Company Name: JPI
Origin: Korea
Trade Mark: JPI

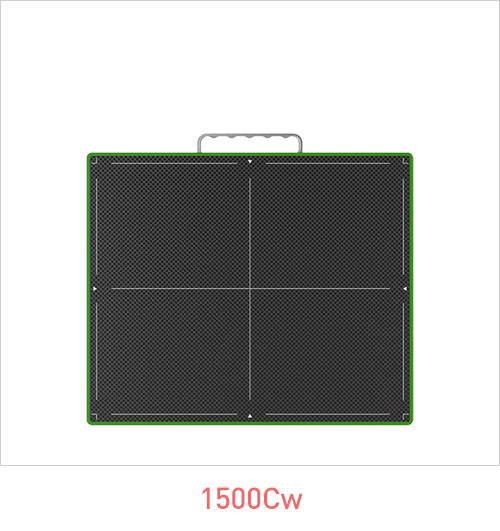

Model: Clear vision care view 1500CW
Download DR WirelessSpecifications:
Specifications :
Clear Vision REF series X-ray flat panel detectors incorporate the proven technology of
amorphous silicon. The amorphous silicon photodiode array and TFT underneath convert
invisible X-ray photons into visible photons, and then into electric charges.
The electron signals are measured and amplified in the data line, and then converted to
digital signals by the Analog/Digital converter. Finally, the digital signals are transmitted
to a PC for processing to from an image. High DQE, high spatial resolution, extraordinary
dynamic range and ultra-low noise are hallmarks of our Clear Vision REF series. Clear
Vision REF detector is submitted for FDA and CE approval.
Specifications :
Sensor (scintillator ) Direct Deposit CsI :TI
Active Area 433.7x354.8 mm
Pixel Array 2816x 2304
Pixel Pitch 154 µm
Image quality
Resolution 3.25Ip/mm
MTF 70% … …. (@ 1 Ip/mm)
40% … …. (@ 2 Ip/mm)
22% … ….(@3 Ip /mm)
DQE *RQA5,27 µGy)
65% …(@0 Ip/mm)
20%...(@3 Ip /mm)
AD Conversion 16 bits
Communication interface Gigabit Ethernet 2.4G/5Ghz .300 Mbps
Image Acquisition time 2-3 sec (wired)
4-5 sec (wireless)
Exposure control F2AED manual Sync
Mechanical 460*384*15 mm
Weight 3.7 kg.
Power (Max.) 8 W/20W
Power Supply 100-250V AC
Frequency 50/60HZ
Battery 3260 mAh .14.8 V
Specifications :
Clear Vision REF series X-ray flat panel detectors incorporate the proven technology of
amorphous silicon. The amorphous silicon photodiode array and TFT underneath convert
invisib ... read more
DR Wireless,JPI,Clear vision care view 1500CW
Company Name: JPI
Origin: Korea
Trade Mark: JPI

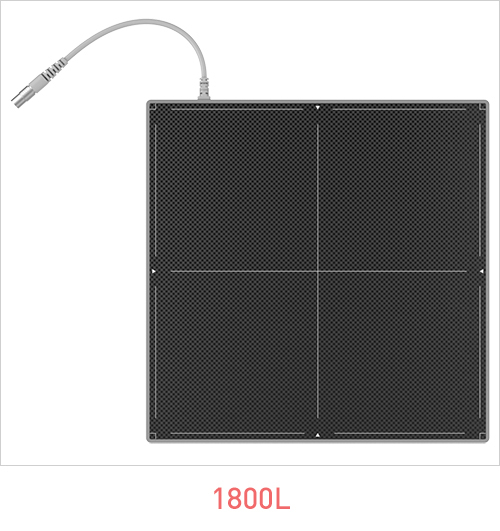

Model: Clear vision care view 1800L
Download DR WiredSpecifications:
Clear Vision REF series X-ray flat panel detectors incorporate the proven technology of
amorphous silicon. The amorphous silicon photodiode array and TFT underneath convert
invisible X-ray photons into visible photons, and then into electric charges.
The electron signals are measured and amplified in the data line, and then converted to
digital signals by the Analog/Digital converter. Finally, the digital signals are transmitted
to a PC for processing to from an image. High DQE, high spatial resolution, extraordinary
dynamic range and ultra-low noise are hallmarks of our Clear Vision REF series. Clear
Vision REF detector is submitted for FDA and CE approval.
Specifications :
Sensor (scintillator ) Direct Deposit CsI :TI
Active Area 434*434 mm
Pixel Array 2816x 2816
Pixel Pitch 154 µm
Image quality
Resolution 3.25Ip/mm
MTF 70% … …. (@ 1 Ip/mm)
40% … …. (@ 2 Ip/mm)
22% … ….(@3 Ip /mm)
DQE *RQA5,27 µGy)
65% …(@0 Ip/mm)
20%...(@3 Ip /mm)
AD Conversion 16 bits
Communication interface Gigabit Ethernet
Image Acquisition time 2-3 sec (wired)
Exposure control F2AED manual Sync
Mechanical 460*384*15 mm
Weight 3.7 kg.
Power (Max.) 8 W/20W
Power Supply 100-250V AC
Frequency 50/60HZ
Battery 3260 mAh .14.8 V
Clear Vision REF series X-ray flat panel detectors incorporate the proven technology of
amorphous silicon. The amorphous silicon photodiode array and TFT underneath convert
invisible X-ray photons i ... read more
DR Wired,JPI,Clear vision care view 1800L
