Company Name: JPI
Origin: Korea
Trade Mark: JPI

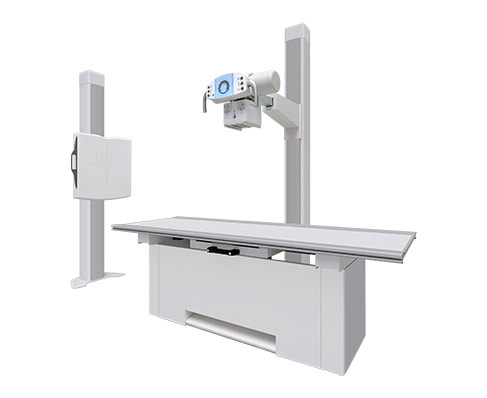

Model: DRE-140
Download X-ray 500 MLSpecifications:
Technical specification :
Generator :
Max.out :50kw
Ma range: : 10-500mA
kV range : 40-150kV
mAs range : 0.1-630As
power supply :3Ø220 VAC50/60Hz
Exposure tim : 0.001-6.3 sec
No.of APR : 1.024
Option : AEC / high speed rotor / DAP
Collimator:
Power supply : 1Ø 24VAC50/60Hz
Max.field size : 35x35cm atSID 65cm
Inherent filtration : 102mmAl
Lamp luminosity : over 160Lux
Lamp time : 30sec
Field size control : manual
Tube stand :
Vertical travel distance : 1.400mm
Transverse travel distance : 260mm
Min.tube height (from floor) : 550mm
Max.tube height (from floor) : 10950mm
Column rotation : ±90°
Tube rotation : ±180°
Longitudinal travel distance : 2.400~3.00mm(floor ceiling fixed type)
: 1.500mm (floor ceiling fixed type )
Power supply : 24VDC,3A
Weight : 200kg ( with rails )
Bucky stand :
Vertical travel distance : 1.400mm
Min . Bucky hight ( from floor ) : 400mm
Max. Bucky hight ( from floor ) : 1.800mm
Power supply : 1Ø16- 24VAC50/60Hz
Weight : 120kg

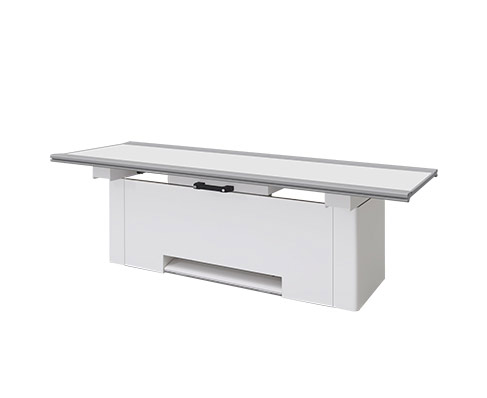

Buckytable :
Table top size : 2.000X745mm
Table top height : 670mm
Table top materia : Acryl
Longitudinal travel distance : ±280mm
Transverse travel distance : ±140mm
Bucky travel distance : ±240mm
Max. patient weight :Max.150kg
Power supply : 1Ø 220VAC 50/60Hz
Weight : 160kg
X-ray tube:
Focal spot: 0.6/1.2 mm
Anode heat capacity: 210 kj (300 KHU)
Target angel: 12°
Voltage range: 40-125kv
Weight: 18kg
Permanent filtration: 0.9 mmAl
Flat panel detector: ( 2 Flat Panel Detector )
Scintillator: CsI
Pixel pitch: 143 µm
Resolution: 3.7 Lp/mm
MTF: 36% (2.0Lp/mm, 70Kvp, 1×1)
DQE : 70%
Active Area: 35×43 cm
Pixel matrix : 2,448 × 2,984
AD conversion : 16 bits
Energy range : 40~ 150 Kvp
Power supply: 1Ø 100~240 VAC 50/60Hz
Dimension : 460×384×15 mm
Weight: 3 kg
Technical specification :
Generator :
Max.out :50kw
Ma range: : 10-500mA
kV range : 40-150kV
mAs range : 0.1-630As
power supply : ... read more
Company Name: JPI
Origin: Korea
Trade Mark: JPI

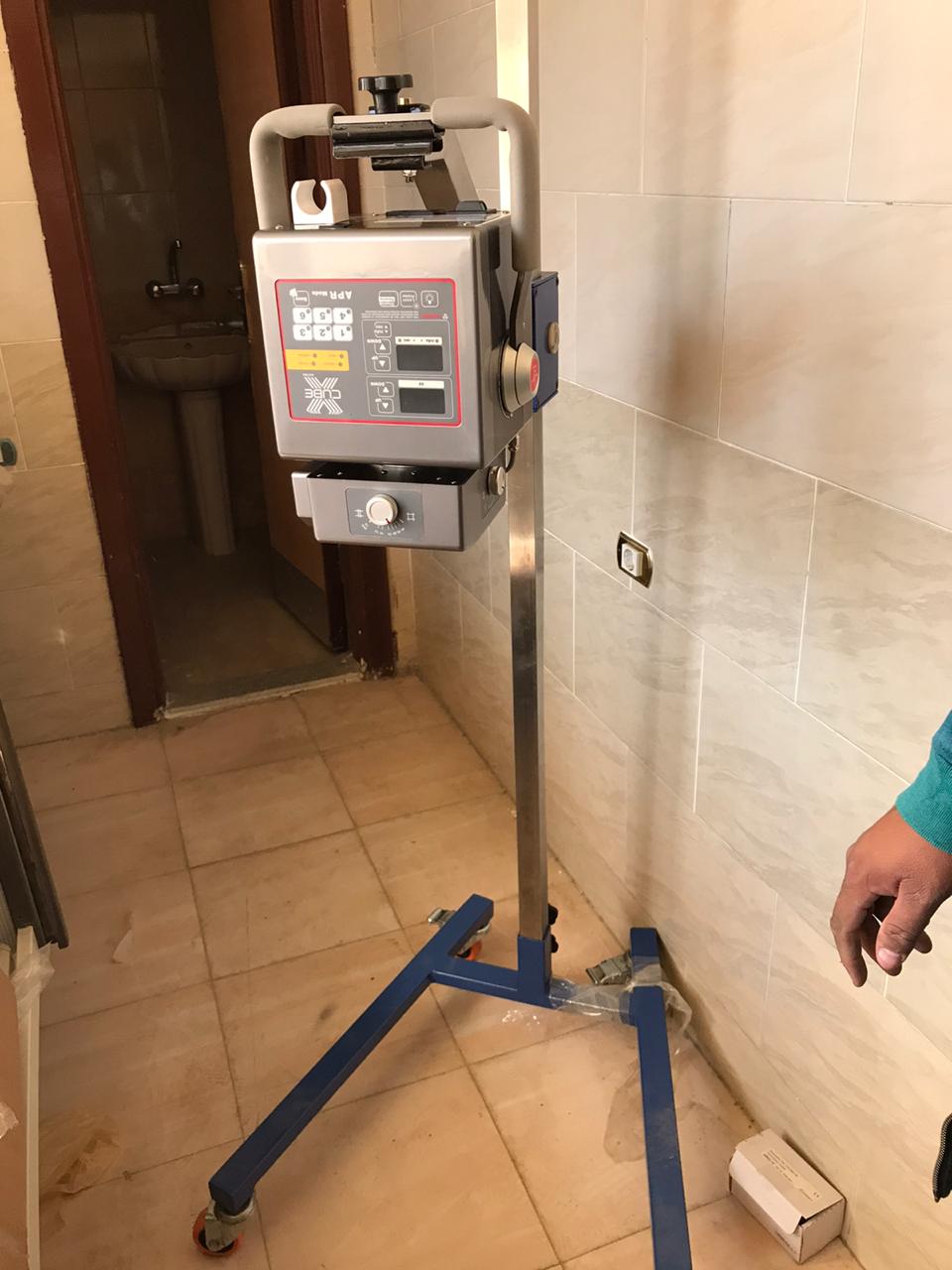

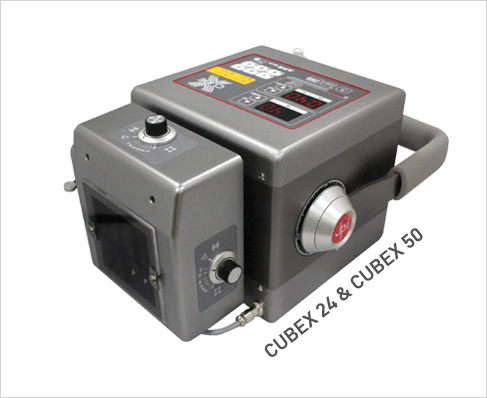

Model: Cubex 50
Download Portable X-ray 100mlSpecifications:
Technical Specification:
High Frequency portable x-ray
We took the motive from Rubik's Cube when we decided on our product identity and name .CUBEX which represents the wide range of creative solutions CUBEX brings as RUBIK's Cube itself stands for wide range of creative solutions
Simple design
Soft touch controls with digitals displays
Calibrated casswttw size indicator dials
Inverted control panel for table use avaliable
Two stage dynamic ,auto line compensation
Easy intergratiooon with digital system
Dual intergrated laser pointer
GENERAL SPECIFICATIONS
Output power 50 (5 kW)
Voltage : 200V-240V
Phase & frequency : Single /50/60 Hz
Radiography kV Range : 50 kV-110 kV
mAs Range : 0.4 mAs-100mAs
mA Range : 20-100mA
Max.kV Deviation +-5%
Max. mAs Deviation +-3%
Indication kV(error code ) /mAs 7 –segment LED)
Focal Spot : 1.8mm*1.8mm
X-ray Tube Targt Angle : 15
X-ray Tube Type : Double Slit type , Manual Operation
Min . X-ray Field Size : 5cm*5cm@1m SID
Max. X-ray field size : 40cm*40cm@75cm SID
Laser pointer : Class III A 5mW
Lamp : 24V 50W Halogen
Dimension : 360*200*190 mm
Packing size : 520*400*330 mm
Product weight : 13 kg
G-weight : 22 kg
Technical Specification:
High Frequency portable x-ray
We took the motive from Rubik's Cube when we decided on our product identity and name .CUBEX which represents the wide range of creative solut ... read more
Company Name: JPI
Origin: Korea
Trade Mark: JPI
Model: Cubex 24
Download Portable X-ray 40mlSpecifications:
Technical Specification:
High Frequency portable x-ray
We took the motive from Rubik's Cube when we decided on our product identity and name .CUBEX which represents the wide range of creative solutions CUBEX brings as RUBIK's Cube itself stands for wide range of creative solutions
Simple design
Soft touch controls with digitals displays
Calibrated casswttw size indicator dials
Inverted control panel for table use avaliable
Two stage dynamic ,auto line compensation
Easy intergratiooon with digital system
Dual intergrated laser pointer
GENERAL SPECIFICATIONS
Output power (2.4 kW)
Voltage : 100V-120V / 220V-240V
Phase & frequency : Single /50/60 Hz
Radiography kV Range : 40 kV-100 kV
mAs Range : 0.4 mAs-100mAs
mA Range : 16-40mA
Max.kV Deviation +-5%
Max. mAs Deviation +-3%
Indication kV(error code ) /mAs 7 –segment LED)
Focal Spot : 1.2mm*1.2mm
Anode Heat Storage : 10KHU
X-ray Tube Targt Angle : 16º
X-ray Tube Type : Double Slit type , Manual Operation
Min . X-ray Field Size : 5cm*5cm@1m SID
Max. X-ray field size : 40cm*40cm@75cm SID
Laser pointer : Class III A 5mW
Lamp : 24V LED
Dimension : 360*200*190 mm
Packing size : 520*400*330 mm
Product weight : 13 kg
G-weight : 22 kg
Technical Specification:
High Frequency portable x-ray
We took the motive from Rubik's Cube when we decided on our product identity and name .CUBEX which represents the wide range of creative solut ... read more
Company Name: JPI
Origin: Korea
Trade Mark: JPI

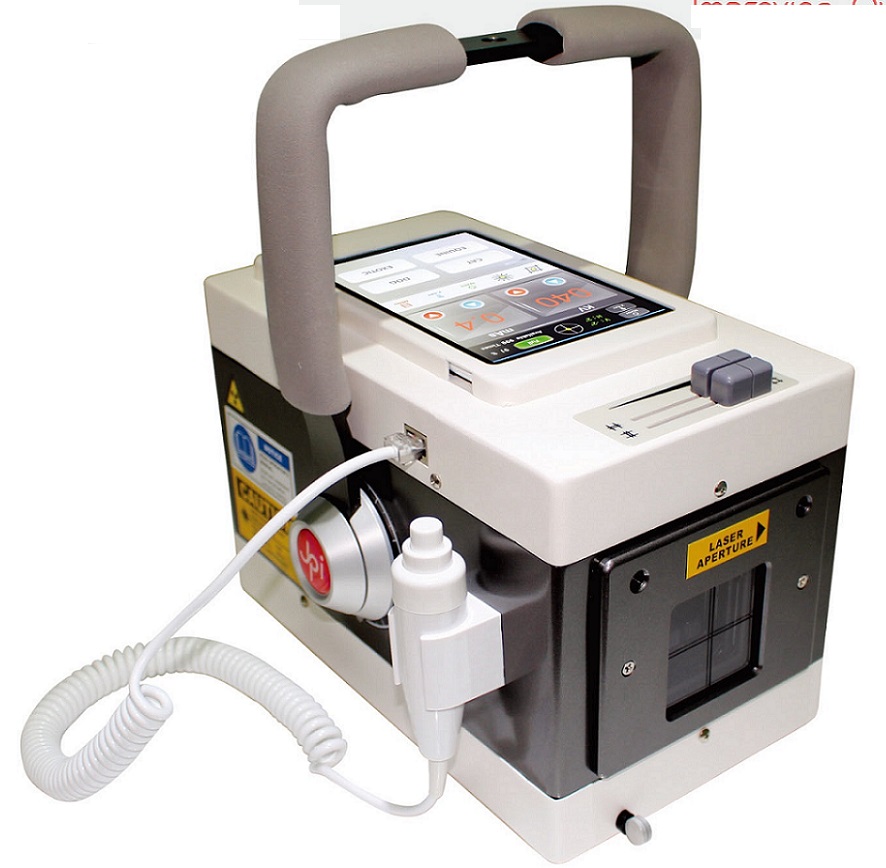

Model: Cube-16B
Download Battery Powered Portable X-ray 100 MLSpecifications:
Technical Specification:
We Took The Motive From Rubik's Cube When We Decided On Our Product Indentity And Name, CUBE Which Represents The Wide Range Of Creative Solutions CUBE Brings As Rubik's Cube Itself Stands For Wide Range Of Creative Solutions.
• Light Weight
• Touch Screen ( Embedded Tablet "LG")
• User Friendly And Intuitive
• Battery Status Monitor
• Leveling Monitor
• 960 APR Program
Specification:
Max Output Power 1.6kW
Generator Frequecy 200kHZ
Kv Range 40~90kV
Ma Range 10~20ma
MAs Range 0.4~100MAs
Focal Spot 0.8*0.8 mm
Target Angel 16°
Kv /MAs Deviation ±35/±55
Battery Charger Input Power Free Voltage 110~220V
Battery Voltage 29.4vdc
Total Filteration 3.0mm
Collimator – Led Lamp LED 3.0V,2.16A,6.5W
Technical Specification:
We Took The Motive From Rubik's Cube When We Decided On Our Product Indentity And Name, CUBE Which Represents The Wide Range Of Creative Solutions CUBE Brings As Rubik's Cub ... read more
Company Name: JPI
Origin: Korea
Trade Mark: JPI

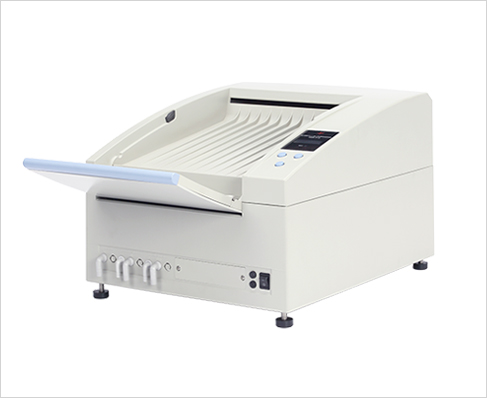

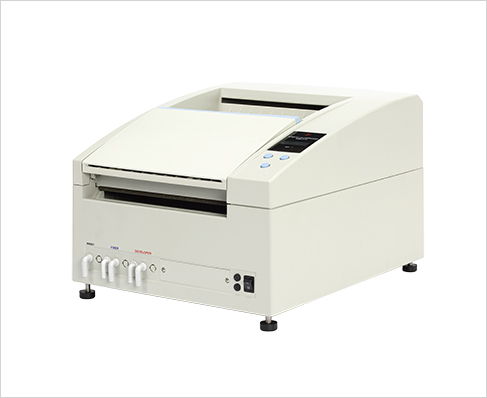

Model: JP–33
Download Automatic Film ProcesorSpecifications:
Technical specification :
Processor type :continuous roller transport system
Processing time : standard : 90 second
Film size : film 4'' x 4'' ( 10 cm x 10 cm ) up to 14'' x 17''( 35 cm x 43 cm)
Processing capacity: 100 sheets / hour (mixed size) at 95 seconds standard processing time
Developer temperature :
• automatic microprocessor controlled
• temperature control range : 28 - 38° c (82-100° f)
• temperature can be easily changed and re-set
Dryer temperature :
• automatic microprocessor controlled
• temperature control range : 45 - 55° c (113 - 131°f)
• temperature can be easily changed and re – set
Circulation mode : anti – crystallization by automatic circulation pump
Replenishment mode : automatic microprocessor and manual – controlled
Dryer type : Blower – heater
Film feed sensor :Magnetic film sensor
Tank Capacities :
• Developer : 5 Liters(1.32 gallons)
• Fixer : 5 Liters (1.32 gallons)
• Washer : 6 Liters (1.58 gallons)
Water consumption :1.5 Liters (0.4 gallons) per minute
Power consumption :
• Operation mode : 1.7 Kw
• Stand-by: 0.8 Kw
Electrical connection :
• Ac 220 –240 volt, 50 –60 Hz Single phase
• Ac 110 –120 volt, 50 –60 Hz Single phase
Standerd accessories :
Replenshment tank : 25 Liters (7 gallons) / 2 Pieces Hose / Stand / Manual / Spare parts kit
Dimension :
• Closed feed tray : L 63.5 cm (25 inches)
H 38.5 cm (15 inches)
W 52.5 cm ( 20.6 inches)
• Opend feed tray : L 86.5 cm (34.9 inches)
H 38.5 cm (15 inches)
W 52.5 cm ( 20.6 inches )
Weight :
• NET: 35 kg (77.1 lbs )
• Gross: 77 kg ( 169.8 lbs )
Technical specification :
Processor type :continuous roller transport system
Processing time : standard : 90 second
Film size : film 4'' x 4'' ( 10 cm x 10 cm ) up to 14'' x 17''( 35 cm x 43 cm ... read more
Company Name: JPI
Origin: Korea
Trade Mark: JPI

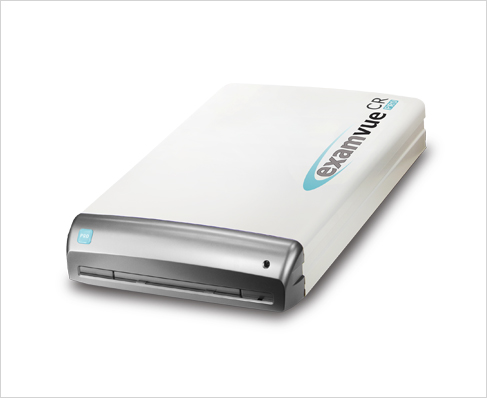

Model: Examevue PRO CR
Download CRSpecifications:
Technical Specification :
ExamVue CR PRO- Compact & Flexible CR Solution
• Crystal Clear image quilty.
• Compact , lightweight and wall-mountable to fit anywhere.
• Superior scanning speed and process.
Dimensions
• D 803 mm (31.6 ")
• W 456 mm (17.9 ")
• H 134 mm (5.4 ")
Weight
• 19.5 Kg (42.4 lbs)
Cassette Sizes
• 35 × 43 cm
• 24 × 30 cm
• 18 × 24 cm
• (default option consists of two 35 × 43 cm )
• Auto- alignment after transportation
Technical Specification :
ExamVueCR Acquisition Software for Medical and Vet
• Next – generation touch Screen user interface.
• Streamlined intuitive workflow.
• Automation using DICOM work list server.
• Position Auto – matching.
• Fast , high quality image processing designed for CR.
• Full image manipulation functionally.
• Fast , easy image verfication
• Simple data management
Specifications :
Supported Imaging Plate Sizes • 70 large ( 35 × 43 cm) plates per hours
• 50 large ( 35 × 43 cm) plates per hours
Resolution • 16-bits per pixel, 65.535 graytones
Weight • 42.4 lbs (19.5 kg)
Power requirements • 100~240V / 60~50Hz, 150W
UPS Recommended
Examvue Acquire Software • Simple and intutive
• DICOM store / send to any DICOM destination
• Annotations andstudy notes and measuring tools
Regulatory approvals • FDA 510(k)
CE (0120)
UL, cUL, FCC
Not approved for mammography
Features • Cost savings by eliminating film and chemistry.
• Increase productivity.
• High quality images.
• Wall mount option for limited space.
• Automatic cassette and plate handling.
Operating conditions • Temperature: 59-86° Fahrenheit (15-30 ° Celsius)
• Temperature Gradient: 0.5 ° Celsius / Min.
• Humidity: 15%-95% RH
• Magnetic Field: Max. 1260 Micro Tesla
Technical Specification :
ExamVue CR PRO- Compact & Flexible CR Solution
• Crystal Clear image quilty.
• Compact , lightweight and wall-mountable to fit anywhere.
• Superior scanning speed ... read more
