Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: SU-02
Download Opertaion Table (Manual )Specifications:

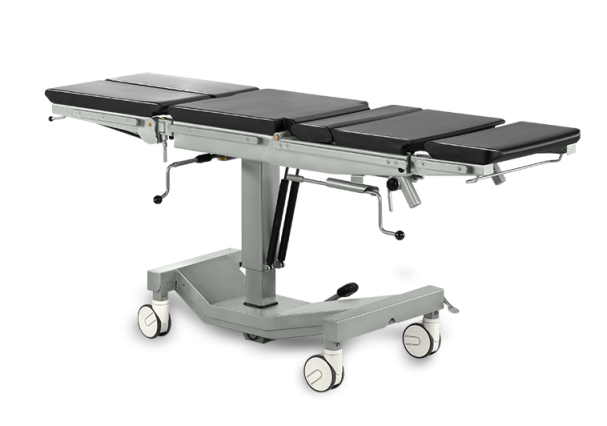

Purpose
Designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology,
laryngology, ophthalmology,endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others.
Functions and drives
• Table top height adjustment with use of hydraulic foot pump.
• Back rest segment angle inclination, leg restsegment (regarding four and five segments table top), head rest segment,Trendelenburg and Reverse Trendelenburg functions are supported by gas springs
with blockade.
• Kidney elevator (in case of five and six segment table top adjusted manually with use of crank placed at patient’s head side).

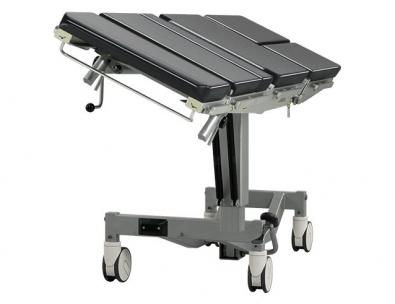

• Lateral tilts are executed with the use of a crank, located on the side of the table under the seat segment or optionally by a crank located at the patient head side.

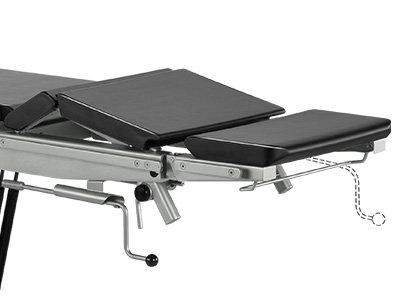

• In case of a six segments table top leg rest segments are manually adjusted
thanks to gear transmission.

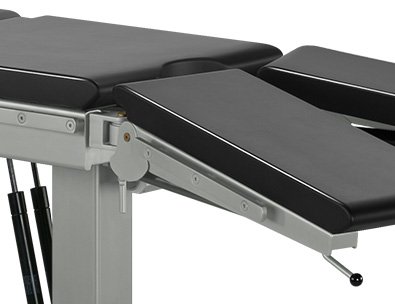

• Leg rest segments are manually aside adjusted.
Standard structure
• The table is constructed of acid proof,stainless steel with mat table surface.
• The mobile table base is operated bya foot lever (In the version equipped
with base made in shape of T letter locking of the table is done with the use of four extended foots. In the operating table version equipped with base made in shape of H letter here is a central locking system equipped with directional wheel).
• Operating table surfaces are easy to clean and resistant to disinfecting agents.
• There is a possibility to change head rest segment with leg rest segment.
• Possible use of plate leg rest segment type.
Purpose
Designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology,
laryngology, ophthalmology,endoscopy, laparoscopy, t ... read more

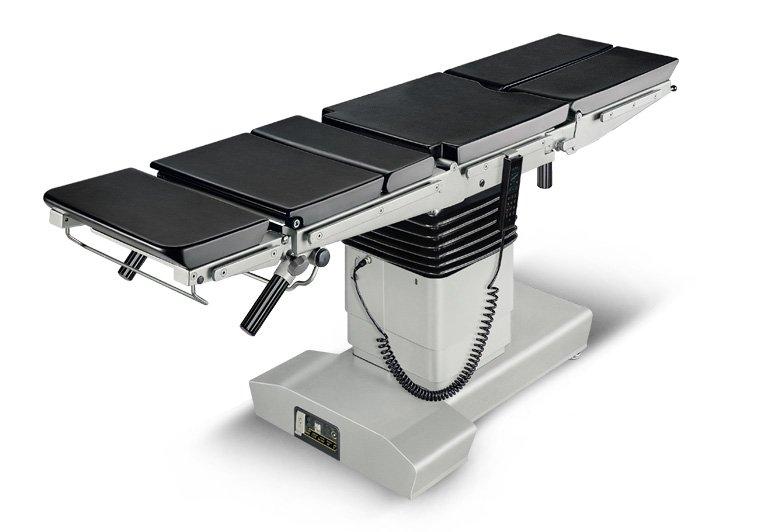

Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: SU-03
Download Operation table (Electrical 3 Function)Specifications:
Purpose
Universal operating table SU-03 is designed for supporting the patient during procedures in the range of general surgery, vascular surgery, cardio surgery, neurosurgery, urology, proctology, gynaecology, laryngology, ophthalmology, endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others.
Standard structure
• Operating table is constructed of acid proof stainless steel with matt surface
• Movable base is equipped with central locking system activated by a foot lever
• Mattresses are removable from table top segments
• Surfaces of the tables are easy to be kept clean and are resistant to disinfecting agents
• The table top is X-ray translucent. It enables taking X-ray pictures and monitoring the patient with a C-arm
Functions and drives

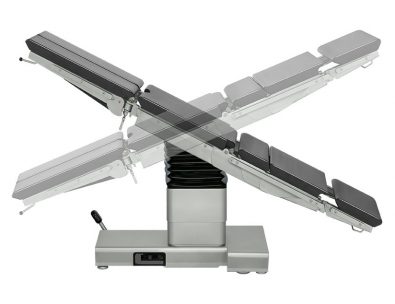

• Table top height adjustment, lateral tilt adjustment, Trendelenburg and reverse Trendelenburg adjustment, table top leveling executed with use of wire hand controller with use of electrohydraulic, 24V battery power supply. Hand controller is equipped with battery charge level indicator
• Back rest and leg rest segment (single section) and head rest segment angle adjustment are supported by gas springs equipped with blockade
• Leg rest segment divided are being set up with use of gear transmission
• Kidney elevator height adjustment at 5 and 6 segments table top is manually executed with use of the gear transmission located at head
rest segment side
• Table top longitudinal shift is manually executed
• Leg rest segments are deflected manually
Purpose
Universal operating table SU-03 is designed for supporting the patient during procedures in the range of general surgery, vascular surgery, cardio surgery, neurosurgery, urology, proctology, ... read more

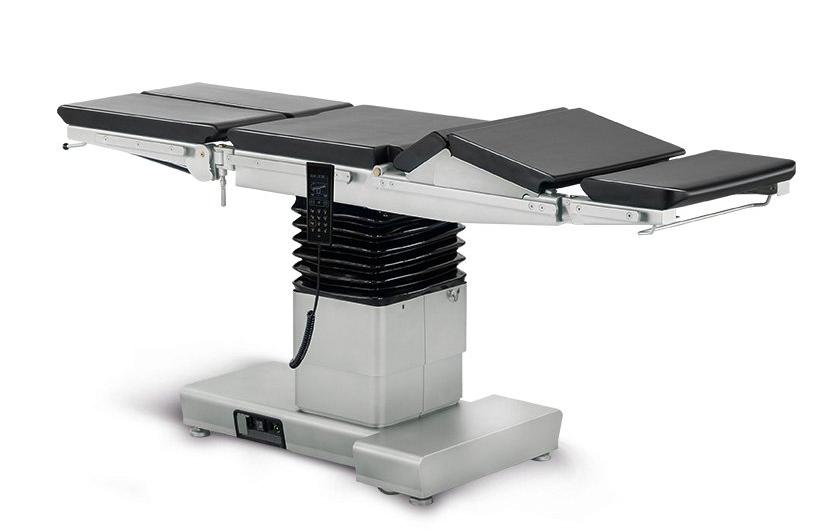

Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: SU-05
Download Operation table ElectricalSpecifications:
Purpose

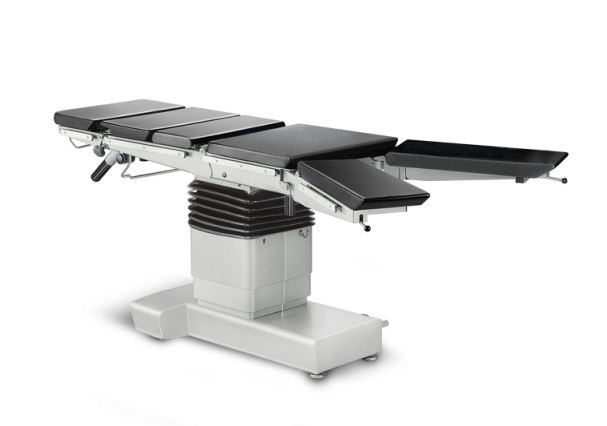

Universal operating tables SU-05 is designed for supporting the patient during carrying out treatments and operations in the range of general surgery, vascular surgery, cardio surgery, neurosurgery, urology, proctology, gynaecology, laryngology, ophthalmology, endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others.
Standard structure
Operating table is made of acid proof stainless steel with matt surface
Movable base is equipped with central blockade activated by a foot lever (in version equipped with base made in T letter shape blockade is executed with use of four mechanically extendable foots. In case of table base version equipped with large wheels there is central wheels blockade equipped with directional wheel).
Mattresses are removable from table top seg¬ments. Mattresses are made of polyurethane foam, seamless, antistatic and resistant to disinfectant agents
The table top is X-ray translucent. It enables taking X-ray pictures and monitoring the patient with a C-arm
Surfaces of the tables are easy to be kept clean and are resistant to disinfecting agents
There is a possibility to change location of the head rest segment with leg rest segment
Functions and drives
Table top height adjustment, lateral tilt adjustment, Trendelenburg and reverse Trendelenburg adjust¬ment, table top leveling are executed with use of wire hand controller thanks to electro-hydraulic battery power supply with tension 24 V DC. Hand controller is equipped with battery charge level indicator
Table top longitudinal shift is executed by electro-mechanic power supply
Head rest segment adjustment is supported by gas spring equipped with blockade
Leg rest segment of five segment table top is sup¬ported by gas springs equipped with blockade
Leg rest segment of six table top is manually adjust¬ed thanks to gear transmission
Manually aside movable leg rest segments
Flex and reflex options
Purpose
Universal operating tables SU-05 is designed for supporting the patient during carrying out treatments and operations in the range of general surgery, vascular surgery, cardio surgery, neuro ... read more
Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: SU-07
Download Operation table Electrical FOR C-ARMSpecifications:
Technical specification :

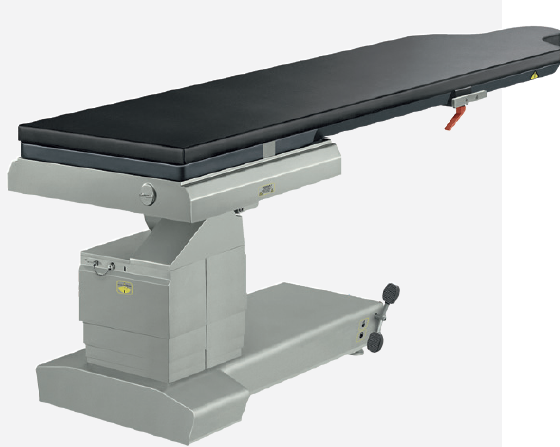

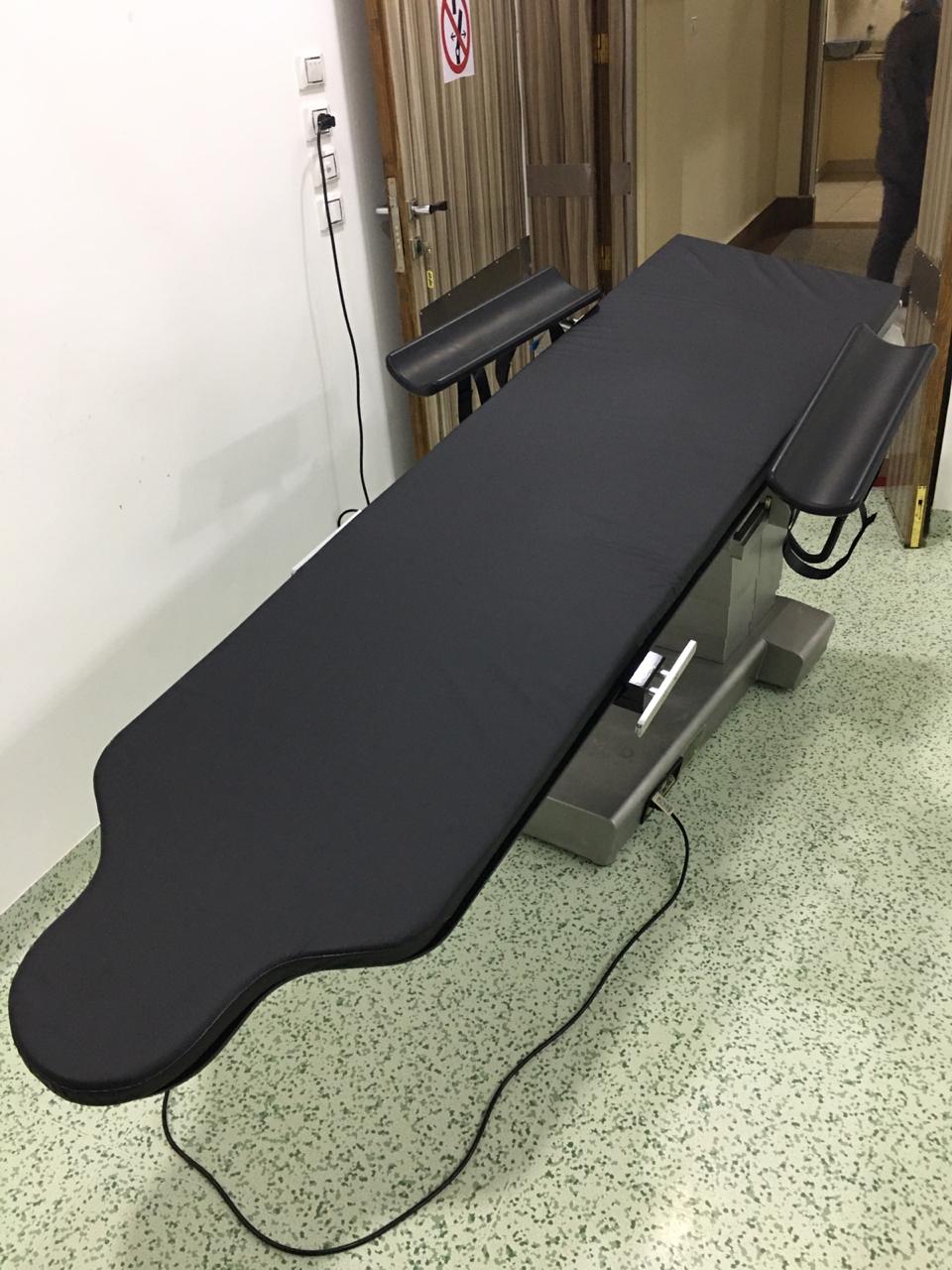

Operating table SU-07 equipped with table top made of carbon fibre is designed for operations in the range of blood vessel surgery, endoscopy and other surgical treatments which require patient’s monitoring.
Thanks to the possibility of exact positioning in X and Y axis (floating table top), as well as wide translucency range and perfect parameters of X-rays permeability, the table top ensures the best conditions of carrying out non-invasive surgery.
Functions and drives
• Table top is equipped with electromechanical longitudinal and lateral shift and diagonal direction shift with possibility of its precise setting up thanks to two-steps speed adjustment
• Lateral tilt, Trendelenburg and reverse Trendelenburg tilt and height adjustment and table top stabilizing performed with use of electro-hydraulic system powered by batteries and activated with use of wire hand controller or wireless hand controller
Standard functions and solutions
• Table is made of stainless, acid proof steel with mat surface
• Table top is made in accordance with the latest technology, made of carbon fibre, RTG ray permeable, allow to receive very clear picture translucent field
• Guaranteed freedom of selection of the monitored field; easy table top movement during diagnosis; full X-ray translucency range: 360⁰ on a distance 1500 mm from of the patient head side
• Patient leg translucency possibility made in a vertical surface on 500 mm distance
• Movable operating table base with blockade possibility executed by extendable base flange
• Operating table surfaces easy for cleaning and resistant to disinfectant agents
• Anty bed-sore, removable mattress made of polyurethane foam equipped with so called “memory shape”, covered with artificial leather, resistant to disinfectant agents
• In option two side rails for additional equipment fixing
Technical specification :
Operating table SU-07 equipped with table top made of carbon fibre is designed for operations in the range of blood vessel surgery, endoscopy and other surgical treatments ... read more
Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: SU-10
Download Operation table ElectricalSpecifications:

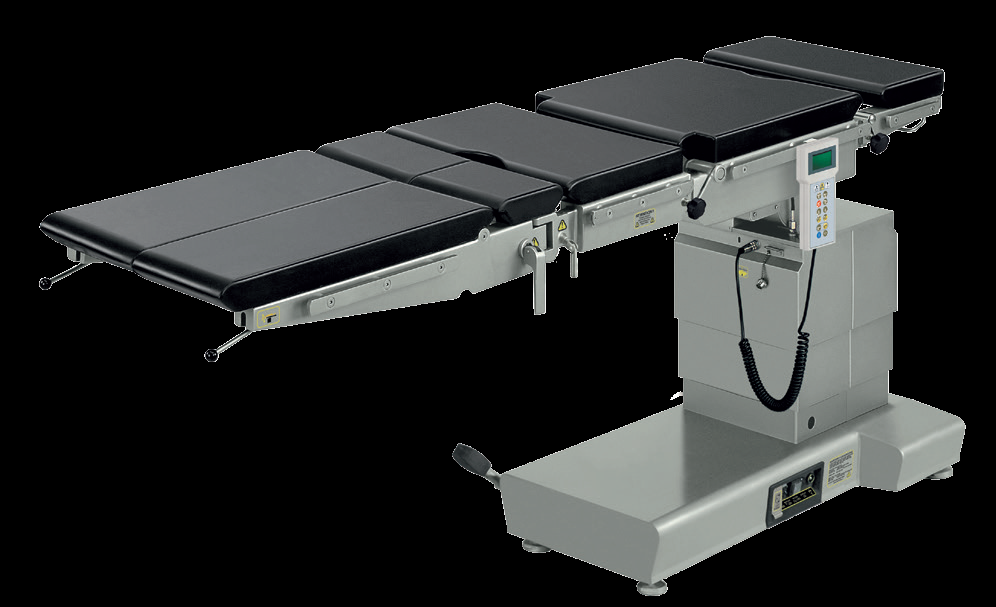

Operating table SU-10 is designed to support patients during operations in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology, laryngology, ophthalmology, endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others.
Functions and drives
Pallet’s height adjustment, lateral tilts, Trendelenburg, reverse Trendelenburg, seat rest segment adjustment, pallet’s leveling are adjusted by an electro-hydraulic system which is supplied with 24 V DC batteries
Head rest and leg rest segment adjustments are performed manually by gas springs with locking systems
Standard structure
The table is made of acid proof, stainless steel
The movable base is equipped with a central locking system controlled by foot lever
The table top does not have any metal cross-beams, which together with asymmetrically placed column enable the possibility of patient monitoring with a C arm during surgery, without any need to apply a longitudinal shift function of the table top. The table top is adapted to be used with specialized neurosurgical equipment such as Doro or Mayfield attachments
The table top is X ray translucent. Mattresses are removable from the table top segments, seamless, antistatic and resistant to disinfecting agents
The surfaces of the table are easy to be kept clean and immune to disinfecting agents
To increase functionality of the table there is a possibility of exchanging the foot rest, head rest, seat rest segments
Operating table SU-10 is designed to support patients during operations in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology, laryngology, o ... read more
Company Name: FAMED
Origin: Poland
Trade Mark: FAMED
Model: HYPERION
Download Operation table ElectricalSpecifications:
HYPERION
A SINGLE RESPONSE TO MANY CHALLENGES
The surgical discipline is evolving to meet current medical trends and changing procedures. We designed our new operating table to make it as versatile as possible.
It can be used with complete confidence over a wide range of procedures, including
telemedicine, interacting with an integrated operating theatre control system or
operating on bariatric patients.
INTEGRATED CONTROL SYSTEMS
The Hyperion table can be controlled using several methods, minimising the time required to set up the table
and increasing the effectiveness of the operation. The Hyperion is designed to work alone or in an integrated
operating theatre system environment. When connected, the Hyperion table can be controlled wirelessly using a touch control panel integrated into the operating theatre wall or using gestures interpreted by a special monitor.
OPERATING ON BARIATRIC PATIENTS
The combination of low minimum table height (590 mm, without mattresses) and high maximum load (350–450 kg) enables safe operations on obese patients.
OPERATING WHILE SITTING
The table top can be set at a very low height, enabling the surgeon to operate from a seated position, which is
ergonomically efficient and improves the effectiveness of the procedure. Reduced surgeon fatigue during long
operation, more natural hand movement range and greater operating precision – these are only some of the many benefits.
A SINGLE PRODUCT WITH A BROAD SCOPE OF APPLICATION
Owing to excellent parameters and a wide range of position adjustments, the product can be used for virtually all procedures and types of surgery. Of particular importance are the maximum capacity of the table (up to 500 kg) and minimum table top height (585 ± 10 mm, without mattresses). That combination makes it possible to safely operate on even the most obese patients and perform procedures while seated.
The longitudinal shift of the table top (400 mm) makes it easier to use the table in combination with the C arm.
SAFETY AND PRECISION
The Hyperion table can be controlled from multiple locations using with a variety of methods. The table is equipped with a wired remote control unit provided with an LCD screen that enables quick and accurate position change and easy review of the position settings. Using the table reorientation options or returning the
table to examination position with the “0” button, the repositioning of individual table segments takes no time at all. For patient safety purposes, we have also introduced a two-stage repositioning process – first the operator presses the button corresponding to the type of movement and then uses another button to specify the direction of that movement. The dual buttons prevent undesired movements caused by accidentally pressing the wrong button.
The operating table can also be integrated with the rest of the operating theatre.
When connected, the Hyperion table can also be controlled with the following
two methods:
• using the touch screen integrated into the wall,
• by means of operator gestures interpreted through a special monitor.
Both functions enable smooth and accurate control of the product, even from a large distance, which enables the surgery team to use a more efficient and flexible model of work. Other Famed products can also be integrated into the system, e.g., Thea operating lamp and other electronic products (lighting
control system, air conditioning, air supply, etc.).
HYPERION
A SINGLE RESPONSE TO MANY CHALLENGES
The surgical discipline is evolving to meet current medical trends and changing procedures. We designed our new operating table to make it as versatile ... read more
