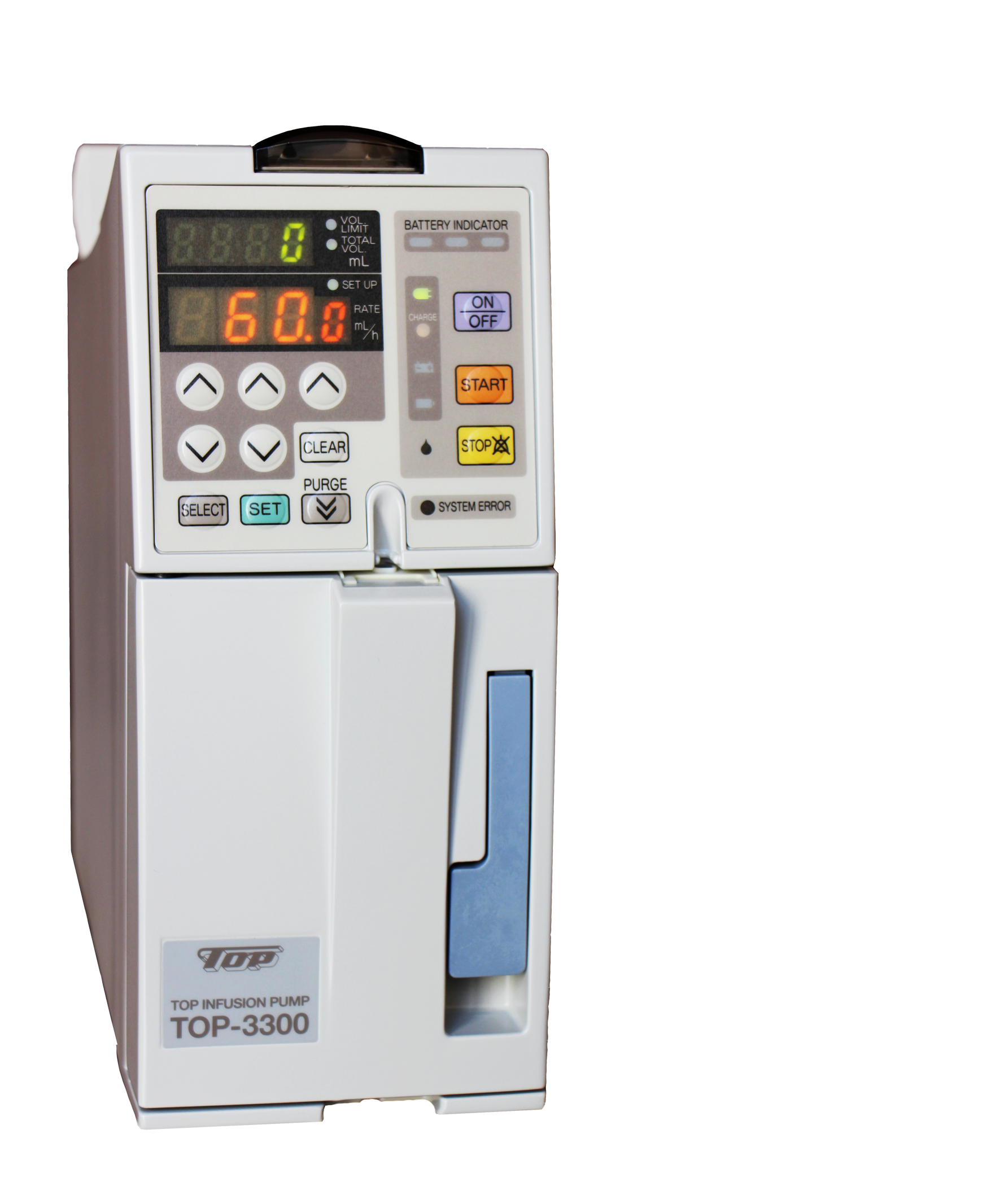

Company Name: TOP
Origin: japan
Trade Mark: TOP
Model: TOP-3300
Download infusion pump TOP-3300Specifications:
Technical Specification:
1) pump type
• Peristaltic finger
2) Applicable IV sets
• TOP IV sets H- Series ( TOP- H ) for infusion Pumps, and other standard IV sets (15,19,20,and 60 drops/mL)
3) Flow rate
• 1.0-999mL/h(TOP-H series dedicated IV set)
• to 99.9 mL/h, 0.1 mL/h increments; above 100 mL/h, in 1 mL/h increments
• 1.0-400 mL/h (standard 15 drops/mL IV set)
• 1.0-380 mL/h (standard 19 drops/mL IV set)
• 1.0-360 mL/h (standard 20 drops/mL IV set)
• 1.0-150 mL/h (standard 60 drops/mL IV set)
• 4)volume limit range : 1 to 9,999 mL in 1 mL increment
5) infusion accuracy
• ±5% when TOP- H sets are used
• ±10% when other common IV sets are used
6) Alarms
• Empty container, Occlusion Door open Air-in-line, Low battery, Infusion complete, Power source switched, Operator error, and other deviced malfunctions
7)Air bubble detection
• Can be set to any or 3 levels, 50µL 0.1mL/15min, 1mL/15min
8)Occlusion detection pressure
Can be set to any of 4 levels when TOP - H sets are used :
• P1-4: Occlusion not detected
• P1-3: ≤ 160.0 kpa ( ≤ 1,200mmHg/ ≤1.63Kgf/cm²)
• P1-2: ≤ 120.0 kpa ( ≤ 900mmHg/ ≤ 1.22Kgf/cm²)
• P1-1: ≤ 80.0 kpa ( ≤ 600mmHg/ ≤0.82Kgf/cm²)
• P1-0: ≤ 40.0 kpa ( ≤ 300mmHg/ ≤0.41Kgf/cm²)
Can be used to either of 2 levels when other common IV sets are used :
• P2-1: ≤ 160.0 kpa ( ≤ 1,200mmHg/ ≤ 1.63Kgf/cm²)
P1-0: ≤ 80.0 kpa ( ≤ 600mmHg/ ≤ 0.82Kgf/cm²)
9)Special functions
• Automatic Shutoff: When the infusion pump is operating on battery power and has been left for 3 minutes with the infusion stopped or in an alarm state, the buzzer sounds. After the buzzer has been left sounding for 3 minutes, the power turns off automatically to conserve the battery.
• Alarm repeat: Unless the cause of an alarm is corrected within 2 minutes after the operator has pressed the "silence" buzzer key, the buzzer will sound again to remind the opertor of the problem.
• Data memorize function: Retains the most recent flopw rate, volume limit or total volume infused for the next used.
• Sound setting: Audible indication of standby and infusion in progress can be turned on or off.
• Power Source Switch alarm: An alarm sounds when AC power supply has stopped and the unit has switched over to battery operation.
10)Operating conditions
• Ambient temperature: +5 to 40°C
• Humidity: 20 to 90% (no condensation)
• Pressure: 70 to 106 kPa
11)Storage conditions
• Ambient temperature: -10 to 45°C
• Humidity: 10 to 90% (no condensation)
• Pressure: 50 to 106 kPa
12)power source
• AC 100-240V ±10%, 50/60Hz
• Internal battery: Rechargeable DC 12 V, 700 mAh,
Ni-Cd(type BP- 53).
• Battery life is approx. 2 hour when using a new, fully charged battery at a fluid delivery rate of 25 mL/h.
• External DC power supply: DC 12.7 to 15 V (external power cord optional)
13)Input current
• AC power supply: ≤ 0.3 A~ external DC power supply: ≤0.7A ̿
14) Classification
• Class I, type CF, IPX1 (drip- proof)
15) Fuse:T1A
16) Dimensions:90(W) x 216 (H) x 209 (D) mm
17)Weight :pprox. 2.6 kg
Technical Specification:
1) pump type
• Peristaltic finger
2) Applicable IV sets
• TOP IV sets H- Series ( TOP- H ) for infusion Pumps, and other standard IV sets (15,19,20,and 60 drops/mL ... read more

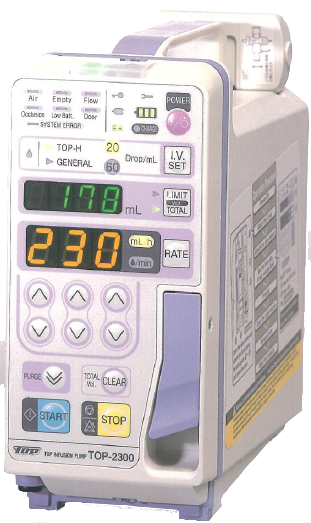

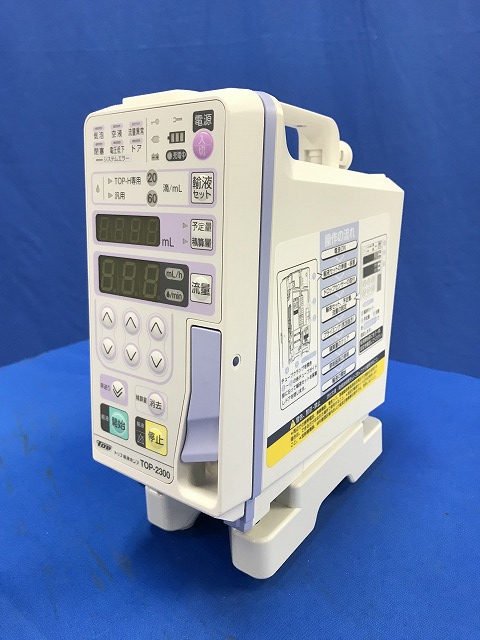

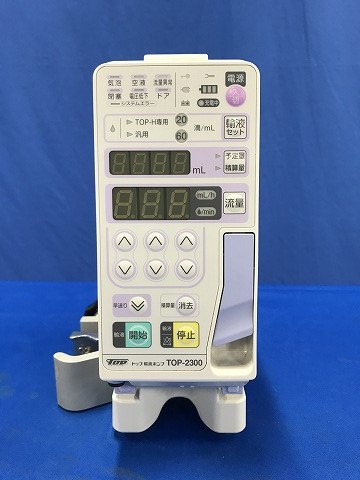

Company Name: TOP
Origin: japan
Trade Mark: TOP
Model: TOP-2300
Download infusion pump TOP-2300Specifications:
Technical Specification:
1) pump type
• Peristaltic finger
2) Applicable IV sets
• TOP IV sets H- Series ( TOP- H ) for infusion Pumps, and other standard IV sets (,20or 60 drops/mL)
3) Flow rate
• 1.0-600mL/h(TOP-H series dedicated IV set)
• 3-300 mL/h (standard 20 drops/mL IV set)
• 1.0-150 mL/h (standard 60 drops/mL IV set)
4)volume limit range
• 1 to 9,999 mL in 1 mL increments
5)Total volume range:
• 0 to 9,999 mL in 1 mL increments
6)Purge flow rate :
• Maximum flow rate of iv set used
7)KVO flow rate :
• 1-10ml/h ( 1ml/h increments )
8) infusion accuracy
• ±7% when TOP- H sets are used
• ±10% when other common IV sets are used
9) Alarms
• Empty container, Occlusion Door open Air-in-line, Low battery, Infusion complete, Power source switched, Operator error, and other deviced malfunctions
10)Air bubble detection
• Can be set to any or 3 levels, 50µL 0.1mL/15min, 1mL/15min
11)Occlusion detection pressure
Can be set to any of 4 levels when TOP - H sets are used :
• P1-3: ≤ 150.0 kpa ( ≤ 1,100mmHg)
• P1-2: ≤ 120.0 kpa ( ≤ 900mmHg)
• P1-1: ≤ 80.0 kpa ( ≤ 600mmHg)
• P1-0: ≤ 40.0 kpa ( ≤ 300mmHg)
Can be used to either of 2 levels when other common IV sets are used :
• P2-1: ≤ 150.0 kpa ( ≤ 1,100mmHg)
• P2-0: ≤ 80.0 kpa ( ≤ 600mmHg)
12)Special functions
• Automatic Shutoff: When the infusion pump is operating on battery power and has been left for 3 minutes with the infusion stopped or in an alarm state, the buzzer sounds. After the buzzer has been left sounding for 3 minutes, the power turns off automatically to conserve the battery.
• Alarm repeat: Unless the cause of an alarm is corrected within 2 minutes after the operator has pressed the "silence" buzzer key, the buzzer will sound again to remind the opertor of the problem.
• Data memorize function: Retains the most recent flopw rate, volume limit or total volume infused for the next used.
• Sound setting: Audible indication of standby and infusion in progress can be turned on or off.
• Power Source Switch alarm: An alarm sounds when AC power supply has stopped and the unit has switched over to battery operation.
13)Operating conditions
• Ambient temperature: +5 to 40°C
• Humidity: 20 to 90% (no condensation)
• Pressure: 70 to 106 kPa
14)Storage conditions
• Ambient temperature: -10 to 45°C
• Humidity: 20 to 90% (no condensation)
• Pressure: 70 to 106 kPa
15)power source
• AC 100-240V ±10%, 50/60Hz
• Internal battery: Rechargeable DC 12 V, 1800 mAh,
Ni-MH (type BP- 23).
• Battery life is approx. 4 hour when using a new, fully charged battery at a fluid delivery rate of 25 mL/h.
• External DC power supply: DC 15 V
16)Input current
• AC power supply: 0.3 A~ external DC power supply: 1.5A
17) Classification
• Class II, type CF, IPX1 (drip- proof)
18) Dimensions:84(W) x 190 (H) x 185 (D) mm
19)Weight :pprox. 2.0 kg
Technical Specification:
1) pump type
• Peristaltic finger
2) Applicable IV sets
• TOP IV sets H- Series ( TOP- H ) for infusion Pumps, and other standard IV sets (,20or 60 drops/mL)
3) F ... read more
Company Name: TOP
Origin: japan
Trade Mark: TOP
Model: TOP-5530
Download Syringe pump TOP-5530Specifications:
Technical Specification:
1) power SUPPLY:
• AC power source : AC 100 -127 ±10% 50/60Hz (for 100V Area) , Ac 200-240 V ±10% 50/60Hz (for 100V Area)
• DC power supply : DC 12V ±5% (type: ST55-4)
• internal battery : DC3.6V 1500mAh NI-MH (type : BP-55)
battery life is approximately 12 hours (at flow rate of 5 mL/h using new battery in fully recharged state )
• Built-in battery : Rechargeable, DC 12V 700mAh NI-CD Model : BP-53
• Alkaline battery : usesfour LR6 type , AA size alkaline batteries DC6V battery life is approximately24 hours (at flow rate
•
2) power consumption external :
• AC power source : 0.3A ( approx.)
• External DC power source : 0.5A ( exact )
3) Applicable syringes
10mL, 20mL, 30mL and 50mL syrings from
1) TOP, TERUMO, B-D or B. BRAUN
2) B-D, TERUMO, MONOJECT or B.BRAUN can be used ( in the auto selecation [*] mode, only the 50 mL syringe can be used ).
4) flow rang
• 0.1-400.0 mL/h (10mL syringe)
• 0.1-700.0 mL/h (20mL syringe)
• 0.1-900.0 mL/h (30mL syringe)
• 0.1-1500.0mL/h (50mL syringe )
• ( setting Adjustable in 0.1mL increments.)
5) total infusion volume range
• 0.1-999.9 mL
6) infusion accuracy
Brand – specififed mode
• Mechanical accuracy : ±1%
• Accuracy including the syring : ±3%
Auto selection [*] mode (only 50ml syringe can be used.)
• Mechanical accuracy : ±1%
• Accuracy including the syringe :±3%
҉ Accuracy obtained when infusion is performed for over one hour
at an infusion rate of 1.0mL/h or more.
7)Bolus rate
• Approx 400.0mL/h (10mL syringe)
• Approx 700.0mL/h (20mL syringe)
• Approx 900.0mL/h (30mL syringe)
Approx 1500.0mL/h (50mL syringe)
4- step selection
• Extra high : 119.7±40.0kpa/ 900±300mmHg/ 1.22±0.41 kgf/ cm2
• High : 93.1±33.3kpa/ 700±250mmHg/ 0.95±0.34 kgf/ cm2
• Middle : 66.5±26.7kpa/ 500±200mmHg/ 0.68±0.27Kgf/cm2
• Low : 39.9±20.0Kpa/ 300±150mmHg/ 0.41±0.20Kgf/ cm2
9)Alarm
Low volume (inactive in the auto selection [*] mode), occlusion, low battery, syringe barel/ syring plunger clamp disengaged, power source switch, remainder, CPU error.
10) Special functions
• Operation Reminder: If the system is left in the suspend state for approximately three minutes, a buzzer will sound.
• Auto power off: If the system is left in the "Operation Reminder" state for another three minutes while ti is powerd by an internal battery, it will be automatically shut off .
• Alarm Repeat: If two minutes have elapsed without resetting the alarm after it is silenced the alarm sounds again.
• Data memorize : Infusion rate set value/Total infusion volume storage setting is allowed.
• Buzzer setting : Presence/Absence of wait tone and operation tone can be speficied.
• Power source switch alarm : Notifies by the alarm sound that power is no longer supplied from the AC or DC power source and the system has entered the battery operation mode.
11) operation conditions :
• Ambient temperture : 10 to 40 °C
• Relative humidity : 30 to 85% ( no condensation )
• Atmospheric pressure : 70 to106kpa
12) Transportation and storage conditions :
• Ambient temperture : -10 to 45 °C
• Relative humidity : 10 to 90% ( no condensation )
• Atmospheric pressure : 50 to 106kpa
13) classification :
• Class I and Internally powerd equipment, Type CF♥, IPX1 (drip proof)
14) fuse : T1A
15)External dimensiobs / weight :
• Approx 320(W)x116(H) X 139(D)mm / approx 2.2kg
Technical Specification:
1) power SUPPLY:
• AC power source : AC 100 -127 ±10% 50/60Hz (for 100V Area) , Ac 200-240 V ±10% 50/60Hz (for 100V Area)
• DC power supply : DC 12V ±5% (type: ST55 ... read more
Company Name: TOP
Origin: japan
Trade Mark: TOP
Model: MJ-210
Download Infusion Pump MJ-210Specifications:
• Technical specification :
Product Name TOP INFUSION PUMP MJ-210
Power Supply AC adapter: Input AC100 240V+10%, 50/60Hz :Output DC5V/2A Internal Battery: Rechargeable DC3.7V 2500mAh Li-ion battery Battery life: Approx. 4hours
Input Current AC power supply: 0.9A
Applicable
Infusion Set [Recommendation] TOP SOLUTION INFUSION SET U series
[Available] INFUSION SET other thon U series
Flow Rate Range Useries mode 0.1 99.9mL/h (0.1 mL/h increments)
100 1200mL/h (1 mL/h increments)
General mode 15drops/mL Infusion set: 1-400mL/h (1 mL/h increments) 20drops/mL Infusion set: 1 360mL/h (1 mL/h increments) 60drops/mL Infusion set: 1 150mL/h (1 mL/h increments)
Volume Limit Range 0.I 9999.9mL (0.1 mL increments)
Total Volume Range 0.0 9999.9mL (0.1 mL increments)
Infusion Accuracy* Useries mode +5% (IEC60601-2-24, Clinical situations)
General mode +10% (IEC60601-2-24, Clinical situations, Water or Saline)
Occlusion Detection
Pressure* Downstream occlusion Upstream occlusion
Useries mode General mode
Oc.Lv.3
oc.Lv.2 Oc.Lv.1 Oc.Lv.0 High 120+30kPa Medium 90+30kPa
Low 60+30kPa Lowest 30+20kPa High Medium Low Lowest
0--100kPo
Air-in-line Detection Sensitivity* Ar.Lv.0 Ar.Lv.1 Ar.Lv.2 High (Approx. 50uL)
Medium (Approx. 0.1mL/15minutes) Low (Approx. 1 mL/15minutes)
Alarm
and Information Volume limit” / Upstream occlusion* / Downstream occlusion* / Air-in-line” /
Empty container* / Flow error / Free flow / DROP SENSOR / Clamp / Auto power OFF / Power loss / System error* / Volume limit pre- / No battery / Low battery / No action / Data reset / Unspecified flow rate / Set value confirmation / Maintenance timer / Power supply switch
Special Functions Automatic INFU3ION SET attaching function / Automatic clamp confirmation function/ Anti-bolus function / KVO function / 3tandby function / Auto power OFF function / Repeat alarm / Buzzer setting / Power supply swithch notice / Key-lock function / Maintenance timer / History function / Alarm setting confirmation function
Environmental Conditions Ambient temperature: 10 40°C
Relative humidity: 20 - 90% (Noncondernsing)
Atmospheric pressure: 70 l06kPa
Service Life 6 years (based on self certification using TOP corporation data)
(Assuming inspection and maintenance are carried out as indicated and consumable parts are replaced as needed.j
Classification ClOSs II / Internally Powered Equipment / Type CF / IPX2 / Continuous operation
Dimensions W180 x H113 x L202 mm
Weight Approx. 1.8kg (Including Clamp and Battery)
• Technical specification :
Product Name TOP INFUSION PUMP MJ-210
Power Supply AC adapter: Input AC100 240V+10%, 50/60Hz :Output DC5V/2A Internal Battery: Rechargeable DC3.7V 2500mAh Li-ion ba ... read more

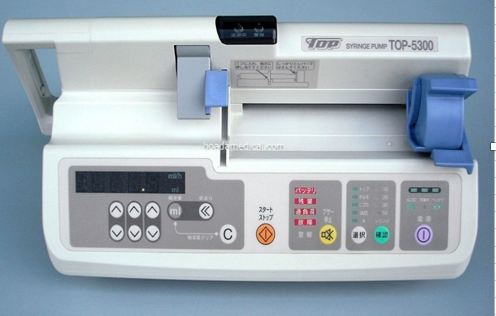

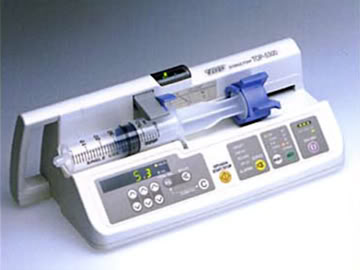

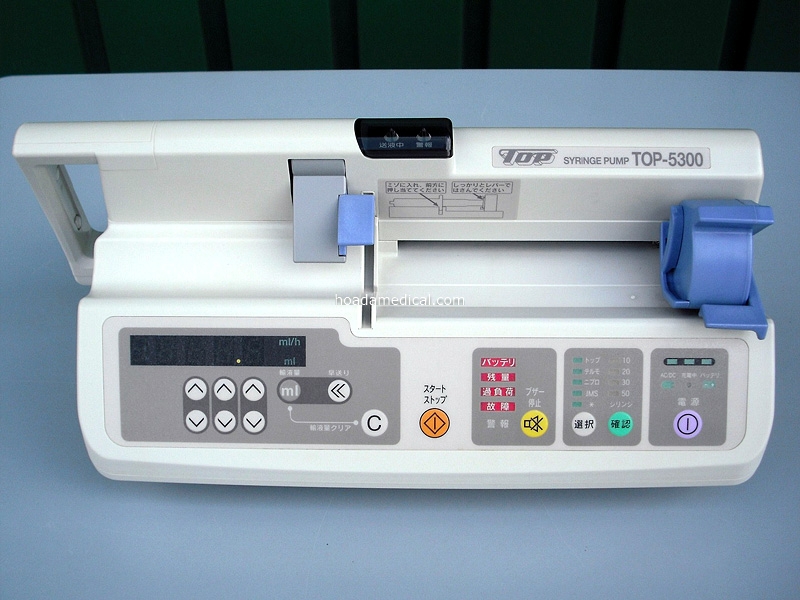

Company Name: TOP
Origin: japan
Trade Mark: TOP
Model: TOP-5300
Download Syringe pump TOP-5300Specifications:
Technical Specification:
1) power SUPPLY:
• AC power source : AC 100 to 240 V ±10% 50/60Hz(approx. )
• ExtrenalDC power source : DC 12.7 to 15V (exact )
• Built-in battery : Rechargeable, DC 12V 700mAh NI-CD Model : BP-53
• Continous operation : Approx. two hours ( when a new battery is fully Recharged with 5mL/h set)
2) power consumption external :
• AC power source : 0.3A ( approx.)
• External DC power source : 0.5A ( exact )
3) Applicable syringes
10mL, 20mL, 30mL and 50mL syrings from
1) TOP, TERUMO, B-D or B. BRAUN
2) B-D, TERUMO, MONOJECT or B.BRAUN can be used ( in the auto selecation [*] mode, only the 50 mL syringe can be used ).
4) flow rang
• 0.1-400.0 mL/h (10mL syringe)
• 0.1-700.0 mL/h (20mL syringe)
• 0.1-900.0 mL/h (30mL syringe)
• 0.1-1500.0mL/h (50mL syringe )
• ( setting Adjustable in 0.1mL increments.)
5) total infusion volume range
• 0.1-999.9 mL
6) infusion accuracy
Brand – specififed mode
• Mechanical accuracy : ±1%
• Accuracy including the syring : ±3%
Auto selection [*] mode(only 50ml syringe can be used.)
• Mechanical accuracy : ±1%
• Accuracy including the syringe :±3%
҉ Accuracy obtained when infusion is performed for over one hour
at an infusion rate of 1.0mL/h or more.
7)Bolus rate
• Approx 400.0mL/h (10mL syringe)
• Approx 700.0mL/h (20mL syringe)
• Approx 900.0mL/h (30mL syringe)
• Approx 1500.0mL/h (50mL syringe)
4- step selection
• Extra high : 119.7±40.0kpa/ 900±300mmHg/ 1.22±0.41 kgf/ cm2
• High : 93.1±33.3kpa/ 700±250mmHg/ 0.95±0.34 kgf/ cm2
• Middle: 66.5±26.7kpa/ 500±200mmHg/ 0.68±0.27Kgf/cm2
• Low : 39.9±20.0Kpa/ 300±150mmHg/ 0.41±0.20Kgf/ cm2
9)Alarm
Low volume (inactive in the auto selection [*] mode), occlusion, lowbattery, syringebarel/ syring plunger clamp disengaged, power source switch, remainder, CPU error.
10) Special functions
• Operation Reminder:If the system is left in the suspend state for approximately three minutes, a buzzer will sound.
• Auto power off: If the system is left in the "Operation Reminder" state for another three minutes while ti is powerd by an internal battery, it will be automatically shut off .
• Alarm Repeat: If two minutes have elapsed without resetting the alarm after it is silenced the alarm sounds again.
• Data memorize : Infusion rate set value/Total infusion volume storage setting is allowed.
• Buzzer setting : Presence/Absence of wait tone and operation tone can be speficied.
• Power source switch alarm : Notifies by the alarm sound that power is no longersupplied from the AC or DC power source and the system has entered the battery operation mode.
11) operation conditions :
• Ambient temperture : 10 to 40 °C
• Relative humidity : 30 to 85% ( no condensation )
• Atmospheric pressure : 70 to106kpa
12) Transportation and storage conditions :
• Ambient temperture : -10 to 45 °C
• Relative humidity : 10 to 90% ( no condensation )
• Atmospheric pressure : 50 to 106kpa
13) classification :
• Class I and Internally powerd equipment, Type CF♥, IPX1 (drip proof)
14) fuse : T1A
15)External dimensiobs / weight :
• Approx 320(W)x116(H) X 139(D)mm / approx 2.2kg
Technical Specification:
1) power SUPPLY:
• AC power source : AC 100 to 240 V ±10% 50/60Hz(approx. )
• ExtrenalDC power source : DC 12.7 to 15V (exact )
• Built-in battery : Rechargeable, ... read more
Our professional experts will help you.
