Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN
Model: kenz 305
Download ECG Machine 3 channel kenz 305Specifications:
Technical Specification:
■ Features:
• Compact and lightwieght:
• Weighing only 1.5kg, inclusive of a built-in rechargeable battery for superior portability.
• Large Display:
• 5.7 inch touch screen to display a full alphanumeric keyboard to enter patient information and preveiw of 12 lead ECG waveforms.
• And an optional external PC keyboard can be connected to the ECG 305.
• Large data storage capacity:
• Internal memory for maximum 200 resting ECG and optional removable USB memory media.
• Data transmission:
• ECG data with patient information can be transmitted via LAN port.
• Export in XML data format is possible.
• Diverse recording formats :
• Single channel, single channel+ rhythm lead, 3 channels and long-term recording.
• Maximum 24 seconds of ECG per lead can be recorded.
• Measurements:
• ECG measurements can be output to support physicianʾs diagnosis.
• Barcode and magnetic card scanning options:
• Optional barcode or magnetic card reader can be connected.
• Recording Modes:
• Auto Mode:
• Simple one touch operation of fully automatic ECG recording in preset format.
• Pre-chek Mode :
• Standing by for occurrence of arrhythmia. Provided arrhythmia is detected, ECG recording will be automatically started .
• Manual Mode:
• Conventional manual ECG recording . leads, speed, sensitivity and filter can be selected manually.
• Long Term Mode:
• Recording a selected lead for a long term (preset for 1 to 5 minutes or continuous time)
Printed Reports:
1ch, 1ch+rhythm lead, 3ch, long term
*Specifications
*Input
Input impedance: 10mΩ or more
*Leads: standard 12 leads and cabrera leads (leads acquisition: coordinate phase or real time)
*Patient input: one patient
*Common Mode Rejection: 100dB or more
*Polarization voltage: ±500 mV or more
*Frequency Response: 0.05 to 150 Hz, within -3 dB to +0.5dB
*Time Constant: 3.2 sec. or more
*Filter: Digital filter ,hum noise.
Drift(weak/normal), muscle(35/25Hz)
*A/D Conversion: 12bit (4.88µv/digit)
*Sampling Rate: 1,000 sampling /sec. pacemaker detection auxiliary function 10,000 samples/sec.
*Display
*Display System: 5.7 inch STN liquid crystal monochrome display with backlight , 320×240 dots
*ECG Display: 3Lead, 3+Rhythm Lead, 12Lead
*Display
*Display System: 5.7 inch STN liquid crystal monochrome display with backlight , 320×240 dots
*ECG Display: 3Lead, 3+Rhythm Lead, 12Lead
*Built-in Thermal Printer
*Recording system: Thermal Array (8dot/mm)
*ECG Recording Format: 1Lead, 1Lead +Rhythm,3Lead
Recording Time: 8 to 24 second,
Heart rate,measurement Value.
*Recording Sensitivity: 2.5, 5, 10, 20 mm/mV, Auto selection
*Recording Speed: 5, 10, 12.5, 25, 50mm/sec.
*ECG paper: Roll paper (63mm in width)
*Safety
*safety: class I,Type CF
*Water Proof Protection: Non water proof device (IPXO)
*Flammable Anaesthetic: Not applicable
*Mode of Operation: continuous operation
*Power Source
*Rated Power Supply: 110 to 240 VAC, 50 to 60 Hz, 90 VA
*Rechargeable Battery: 12 VDC 1500mAH, Nickel-metal Hydride battery 3 hours ot 700ECG recordings on a full charge of battery for 8.5 hours.
Auto Mode:10 seconds normal waveform and HR60
*size
*Dimensions: 266mm(W)× 173mm(D) × 75mm(H)
*Weight: Approx. 1.5 kg (including the rechargeable battery)
*Operating Enviroment
*Temperature: 10 to 40˚c
*Humidity: 25 to 95% RH (Without dew condensation)
*Pressure: 700 to 1060 hPa
*Transportation and Storage Enviroment
*Temperature: -10 to 60˚c
*Humidity: 25 to 95% RH (Without dew condensation)
*Pressure: 700 to 1060hPa
*Communication Port
*LAN port: IEEE 802.3u 100BASE-TX×1
*USB port: 1 port (USB 2.0 compliant)
*Standard Accessories
*Power cable
*Limb electrode: (4pieces/box)
*Chest electrode: (6pieces/box)
*Patient cable
*ECG electrode cream 70g
*Operation manual in CD-R
*Recording paper
*Paper spool
Technical Specification:
■ Features:
• Compact and lightwieght:
• Weighing only 1.5kg, inclusive of a built-in rechargeable battery for superior portability.
• Large Display:
• 5 ... read more
Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN
Model: KENZ Cardico 306
Download ECG Machine 3 channel KENZ Cardico 306Specifications:
Technical Specification:
■Input:
• Input Impedance:
10MΩ or more
• Leads :
Standard 12 leads and Cabrera lead
Simultaneous or Real time input
• Patient Input:
OnePatient
• Common Mode Rejection:
100 dB or more
• Frequency response:
0.05 – 150Hz within 3dB
• Time constant :
3.2 seconds or more
• Digital Filter:
AC: -30dB or less, 60 or 50Hz
Drift: -3dB, 0.5Hz Muscle: -3dB, 35Hz or 25Hz
• A/D conversion:
12bit
• Sampling rate:
10000 sampling /sec.
• Defibrillator Protection :
to 5000V, 400J
• Patient leakage current:
10µA or less
• Polarization Voltage:
±500mV or more
Display:
• Display System:
5.7 inch STN liquid crystal monochrome display with backlight, 320×240 dots
• ECG Display:
4/12-Lead
■Print :
• Print Mode:
3chx4-row, 3chx4-row+Rhythm
Arrhythmia Monitoring Summary, ANS Test
• Recording Type:
Thermal Array (8 dots/mm)
• Recording Sensitivity:
2.5, 5, 10 OR 20 mm/mV, Auto selection
• Recording Speed: 5, 10,12.5, 25, OR 50 mm/sec
Paper Size: Roll : 80 mm x 30 M
■ Memory :
• Internal Memory :
200 resting ECG
External Inkjet Printer:
USB Interface1 or 2 pages with Landscape/Portrait in A4/Letter
ECG: 12chx1-row or 6chx2-row with Interpretation Result
■Data Communication :
• ECG Data LAN: IEEE 802.3U 100 BASE,TX x 1
• External Memory, Printer or Keyboard: USB 2.0 x 1
Keyboard
Alphanumeric Touch Key in LCD
Function Keys (Membrane Switch)
Operation mode
Auto, Freeze, Pre-check, Post Stress, Manual, Lead - off Alarm
Arrhythmia monitoring mode: 1-15 min, Filing Mode
■ Interpretation :
• Number of Statement : 147 cases
Neonate : 0 – 11 Years Old
Child : 12 – 18 Years Old
Adult : Over 19 Years Old
■Safety :Class I Type CF
Water Proof Protection: Non water proof device(IPXO)
Flammable anaesthetic: Not applicable
Mode of Operation: Continuous operation
■ Power source :
• Rated Power Supply: 100 to 240 VAC, 50 to 60Hz,90VA
• Rechargeable Battery
• Nikel-Metal Hydride battery
• DC 12 V 1500 mAh FDK model: 10HR-AAU
• Rechrage time: 8 hours
• Continuous operation: 2 hours
■Size :
Dimensions: 266mm(W)×173mm(D)×75mm(H)
Wieght Approx.: 1.5kg (including the rechargeable battery)
■Operating Environment :
• Temperature :-10 – 40°C
Humidity : 25 – 95% RH without dew condensation
Pressure : 70 – 106 kPa
■Storage Environment :
• Temperature :-10 – 60°C
• Humidity :
25 – 95% RH without dew condensation
Pressure:70 – 106 kPa
Standard accessories:
• Power Cable
• AC adaptor
• Limp electrode (containing 4 pieces/box)
• Chest electrode (containing 6 pieces/box)
• Patient Cable
• ECG electrode cream 70g
• Operation manual
• CD-R
• ECG recording paper
• Paper spool
Technical Specification:
■Input:
• Input Impedance:
10MΩ or more
• Leads :
Standard 12 leads and Cabrera lead
Simultaneous or Real time input
• Patient Input:
... read more
Company Name: Biocare
Origin: china
Trade Mark: Biocare
Model: iE 300
Download ECG Machine 3 channel iE 300Specifications:
• Technical Specification:
Biocare iE 300 ECG Machine
The Biocare iE 300 is a 3-lead ECG monitor with evaluation and interpretation, which can be used for adults, children and infants. The integrated lithium battery, the compact dimensions and the low weight make it easy to use the Biocare iE 300 for mobile applications. This ECG machine is multi-lingual and offers intuitive operation via practical shortcut keys.
Product Details
• Biocare iE 300 3-lead ECG machine
• With evaluation and interpretation
• For ECGs with adults, children and newborns
• High resolution 5 inch LCD display
• Simultaneous recording of 12 derivatives
• Modes: AUTO, Manual and Rhythm
• Internal thermal printer
• Visual and acoustic alarms for low battery charge, empty paper tray or detached leads
• Prints on 80 mm wide thermopaper (8 cm wide)
• With integrated lithium battery (up to 3 hours of continuous operation per full charge)
• Battery charge level display
• Easy operation with «One-touch» shortcut keys
• Up to 300 seconds of rhythm analysis - eases arrhythmia detection
Technical Details for the Biocare iE300
• AC filter
• Baseline filter
• EMG filter
• High frequency filter
• Storage formats: JPG, PDF, XML
• Multilingual: German, English, French, Italian, Polish, Spanish
• Available ports: 2x USB, 1x LAN port
• Weight: approx. 1.3 kg
• Dimensions: 28.1 x 19.1 x 5.9 cm
Delivery Contents with this Biocare ECG Machine
• Biocare iE 300 ECG Machine
• Patient cabels
• Adhesive, suction and clamp electrodes
• ECG paper
• Mains power plug
• User manual
• Technical Specification:
Biocare iE 300 ECG Machine
The Biocare iE 300 is a 3-lead ECG monitor with evaluation and interpretation, which can be used for adults, children and infants. The inte ... read more
Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN
Model: KENZ CARDICO 1215
Download ECG Machine 12 channel KENZ CARDICO 1215Specifications:
Technical Specification:
■ Input:
Input Impedance:
Over 10MΩ
Leads :
Standard 12 leads and Cabrera leads
Simultaneous or Real time input
Patient Input:
One Patient
Common Mode Rejection:
Over 100 dB
Frequency response:
0.05 – 150Hz within -3dB to +0.5 dB
Time constant :
Over 3.2 seconds
Digital Filter:
Hum noise, Drift(weak/normal), Muscle : 25/35 Hz
A/D conversion:
13bit (2.44 µV/digit)
Sampling rate:
Input : 1.0000 sampling/sec
Pacemaker detection auxiliary function 10.000 samples/sec
Interpretation/print : 2 msec
Defibrillator Protection :
Up to 5000V, 400J
Patient leakage current:
Less than 10µA
Display :
Display Screen:
Touch Screen 8.5- inche color LCD touch panel with backlight 800*480 dots
ECG Display:
4/6/12 lead
Print :
Print Mode:
1-Analysis report
2- one sheet report
3- Arrhythmia analysis report
4- 3ch+ Arrhythmia lead ECG
5- 6 ch ECG
6- 12 ch ECG
Printer: Thermal Array 8 dots/mm
Sensitivity:
2.5 , 5 ,10 , 20 mm/mV , Auto selection
Speed: 5, 10,12.5 , 25, 50 mm/sec
Paper Size:
Z-fold paper / Roll paper (210mm width)
■ Safety :
Class I Type CF
Water proof protection : Non water proof device (IPXO)
Mode of operation : Continousoperation
■ Power :
AC 110 ~ 240 V 50-60Hz
Rechargeable battery : 12 VDC, Nickel-Metal Hydride battery FDK model: HHR-38AF25GL
Recharge time : 8 hours
Continous operation : 2.5 hours
Recording ECG for 10 Sec in Auto mode with analysis
■ Size :
• Dimensions: 350mm (W) x 305mm (D) x 89 mm (H)
• Weight: Approx. 4 kg
Operating Environment :
Temperature : 10 to 40°C
Humidity : 25 to 95% RH without dew condensation
Pressure : 700 to 1060 hPa
■ Storage Environment :
Temperature : -20 to 60°C
Humidity : 20 to 90% RH without dew condensation
Pressure : 700 – 1060 hPa
Communication port :
• LAN port
• USB port
Memory :
Internal Memory :
1.000 Resting ECG
External USB :
7.200/8GB Resting ECG (option)
■ Data Communication : USB Port x 1
■ Interpretation :
Number of Statement :
147 cases
Neonate : 0 – 11 Years Old
Child : 12 – 18 Years Old
Adalt : Over 19 Years Old
Operation mode :
AUTo ,Freeze , Pre-check ,Post Stress , Manual , Lead-off Alarm , Arrhythmia monitoring mode : 30 sec , 1-15 min , VPC/SVPC summary , Automatic Nervous system Test
Standard Accessories :
- Lemb electrode
- Chest electrode
- Patient cable
- ECG cream
- AC adapter
- CD-R
- ECG recording paper (Z-fold)
Paper spool
Technical Specification:
■ Input:
Input Impedance:
Over 10MΩ
Leads :
Standard 12 leads and Cabrera leads
Simultaneous or Real time input
Patient Input: ... read more

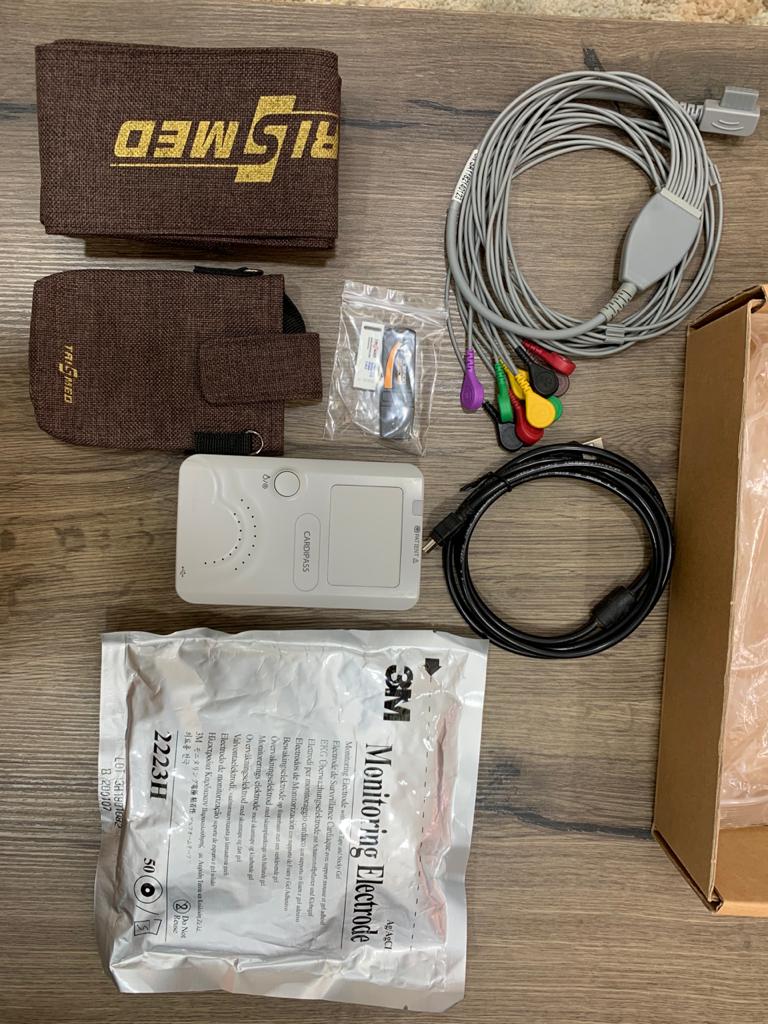

Company Name: TRISMED
Origin: Korea
Trade Mark: TRISMED
Model: Cardicode 300 H
Download Ambulatory (Holter ) ECGSpecifications:
Features:
• 12 or 3-ch selectivity
• Integrated into Cardioffice system for managing patients and studies database
• Export to proprietary and standard formats (DICOM, HL7, aECG (XML), ISHNE)
• Report to standard Printer and PDF,PNG and JPG files with the possibility of sending e-mail
• Built-In accelerometer sensor to record patient body position (option)
• On screen option for mark pauses on ECG recording
• Graphic tools for display high quality ECG waves
• Configurable sampling rate (250/500/1000)
• HRT analysis
• USB interface for setup new record and download data
• Pacer function analyzer
• HRV in time and frequency domains
• QT and Spatial QT Dispersion analysis
• Up to 72 hours of full disclosure recording
• Realtime ECG wave display during recorder configuration
• ST segment analyzer with ST episodes detection in all leads
Weight & Size
• Weight : 80g (without battery)
• Size : 90.5(L) x 65(W) x 24(H)
Features:
• 12 or 3-ch selectivity
• Integrated into Cardioffice system for managing patients and studies database
• Export to proprietary and standard formats (DICOM, HL7, aECG (XML), ISHN ... read more
Company Name: TRISMED
Origin: Korea
Trade Mark: TRISMED
Model: Cardipass 100
Download Stress TestSpecifications:
STRESS ECG SYSTEM
-NewCardiPass100 ECG acquisition module with options for wireless (Bluetooth) and
wired (USB) connectivity. High resolution acquisition.
-Connectivity with CardiPass100as well as Cardipiadevices.
-Extended set of predefined exercise protocols for ergometer and treadmill with options to add new ones including ramping type protocols.
-Compatibility with Ergoline, Ergosanaand Lode bicycle ergometers
and with WellnessTrackand Trackmastertreadmills
-Easy to add support for connectivity with other ergometer and treadmill brand and models on customer demand.
-Integrated support for automatic measurements of NIBP and SpO2 and easy to add support for different brand and models on customer demand.
-Multiple ECG lead views for signal and average complex.
-ECG review option during stress test.
-Wide set of digital filters available and selectable by users during the test to reduce noise andimprove the signal quality.
-Real time trend charts of ST level, ST slope, ST deviation, HR, METs, BP and SpO2 measurements.
-Full control of treadmill and ergometer during Stress test.
-Configuration options to customize parameters for processing and alarm management.
-Customizable set of reports available during review and also during test. -Direct PDF generation without the need of external programs.
-Automatic beat detection and classifying with rhythm analysis and alarms notifications.
-Full disclosure view of the whole test for later review including full stages information, perspectiveand overlapping views of average complexes and event strips for easy lookup of important events.
-Training plan recommendations according to patient and test results.
-Multilanguage support for an unlimited set of languages on user demand.
STRESS ECG SYSTEM
-NewCardiPass100 ECG acquisition module with options for wireless (Bluetooth) and
wired (USB) connectivity. High resolution acquisition.
-Connectivity with CardiPass100as well a ... read more
Our professional experts will help you.
