Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN

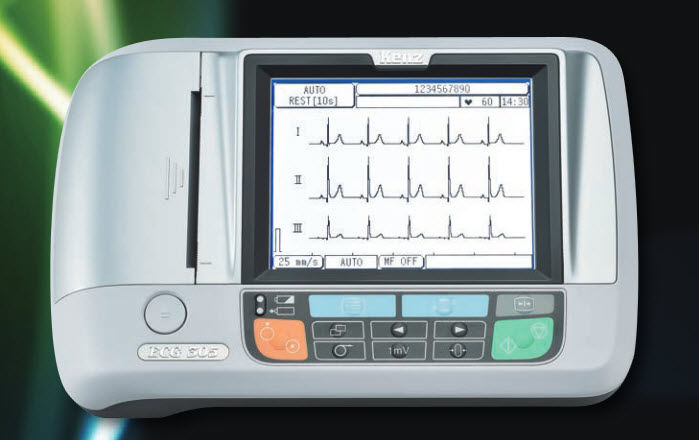

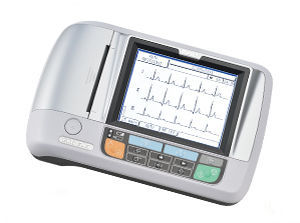

Model: kenz 305
Download ECG Machine 3 channel kenz 305Specifications:
Technical Specification:
■ Features:
• Compact and lightwieght:
• Weighing only 1.5kg, inclusive of a built-in rechargeable battery for superior portability.
• Large Display:
• 5.7 inch touch screen to display a full alphanumeric keyboard to enter patient information and preveiw of 12 lead ECG waveforms.
• And an optional external PC keyboard can be connected to the ECG 305.
• Large data storage capacity:
• Internal memory for maximum 200 resting ECG and optional removable USB memory media.
• Data transmission:

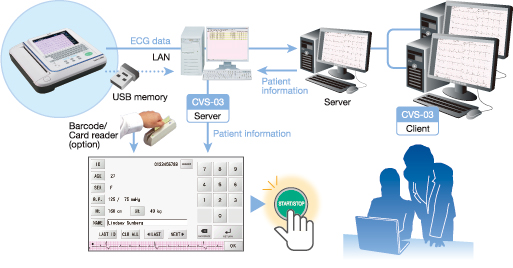

• ECG data with patient information can be transmitted via LAN port.
• Export in XML data format is possible.
• Diverse recording formats :
• Single channel, single channel+ rhythm lead, 3 channels and long-term recording.
• Maximum 24 seconds of ECG per lead can be recorded.
• Measurements:
• ECG measurements can be output to support physicianʾs diagnosis.
• Barcode and magnetic card scanning options:
• Optional barcode or magnetic card reader can be connected.
• Recording Modes:
• Auto Mode:
• Simple one touch operation of fully automatic ECG recording in preset format.
• Pre-chek Mode :
• Standing by for occurrence of arrhythmia. Provided arrhythmia is detected, ECG recording will be automatically started .
• Manual Mode:
• Conventional manual ECG recording . leads, speed, sensitivity and filter can be selected manually.
• Long Term Mode:
• Recording a selected lead for a long term (preset for 1 to 5 minutes or continuous time)
Printed Reports:
1ch, 1ch+rhythm lead, 3ch, long term
*Specifications
*Input
Input impedance: 10mΩ or more
*Leads: standard 12 leads and cabrera leads (leads acquisition: coordinate phase or real time)
*Patient input: one patient
*Common Mode Rejection: 100dB or more
*Polarization voltage: ±500 mV or more
*Frequency Response: 0.05 to 150 Hz, within -3 dB to +0.5dB
*Time Constant: 3.2 sec. or more
*Filter: Digital filter ,hum noise.
Drift(weak/normal), muscle(35/25Hz)
*A/D Conversion: 12bit (4.88µv/digit)
*Sampling Rate: 1,000 sampling /sec. pacemaker detection auxiliary function 10,000 samples/sec.
*Display
*Display System: 5.7 inch STN liquid crystal monochrome display with backlight , 320×240 dots
*ECG Display: 3Lead, 3+Rhythm Lead, 12Lead
*Display
*Display System: 5.7 inch STN liquid crystal monochrome display with backlight , 320×240 dots
*ECG Display: 3Lead, 3+Rhythm Lead, 12Lead
*Built-in Thermal Printer
*Recording system: Thermal Array (8dot/mm)
*ECG Recording Format: 1Lead, 1Lead +Rhythm,3Lead
Recording Time: 8 to 24 second,
Heart rate,measurement Value.
*Recording Sensitivity: 2.5, 5, 10, 20 mm/mV, Auto selection
*Recording Speed: 5, 10, 12.5, 25, 50mm/sec.
*ECG paper: Roll paper (63mm in width)
*Safety
*safety: class I,Type CF
*Water Proof Protection: Non water proof device (IPXO)
*Flammable Anaesthetic: Not applicable
*Mode of Operation: continuous operation
*Power Source
*Rated Power Supply: 110 to 240 VAC, 50 to 60 Hz, 90 VA
*Rechargeable Battery: 12 VDC 1500mAH, Nickel-metal Hydride battery 3 hours ot 700ECG recordings on a full charge of battery for 8.5 hours.
Auto Mode:10 seconds normal waveform and HR60
*size
*Dimensions: 266mm(W)× 173mm(D) × 75mm(H)
*Weight: Approx. 1.5 kg (including the rechargeable battery)
*Operating Enviroment
*Temperature: 10 to 40˚c
*Humidity: 25 to 95% RH (Without dew condensation)
*Pressure: 700 to 1060 hPa
*Transportation and Storage Enviroment
*Temperature: -10 to 60˚c
*Humidity: 25 to 95% RH (Without dew condensation)
*Pressure: 700 to 1060hPa
*Communication Port
*LAN port: IEEE 802.3u 100BASE-TX×1
*USB port: 1 port (USB 2.0 compliant)
*Standard Accessories
*Power cable
*Limb electrode: (4pieces/box)
*Chest electrode: (6pieces/box)
*Patient cable
*ECG electrode cream 70g
*Operation manual in CD-R
*Recording paper
*Paper spool
Technical Specification:
■ Features:
• Compact and lightwieght:
• Weighing only 1.5kg, inclusive of a built-in rechargeable battery for superior portability.
• Large Display:
• 5 ... read more
Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN

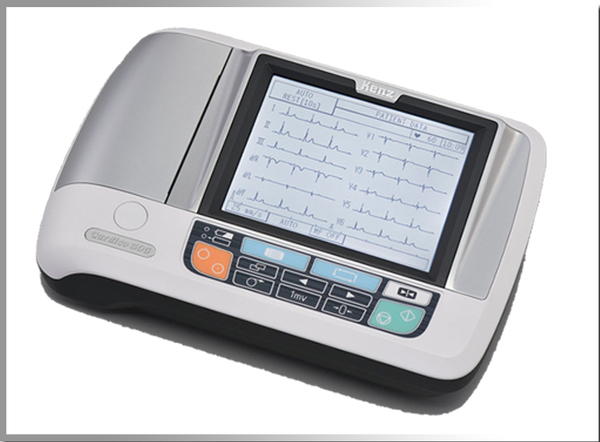

Model: KENZ Cardico 306
Download ECG Machine 3 channel KENZ Cardico 306Specifications:
Technical Specification:
■Input:
• Input Impedance:
10MΩ or more
• Leads :
Standard 12 leads and Cabrera lead
Simultaneous or Real time input
• Patient Input:
OnePatient
• Common Mode Rejection:
100 dB or more
• Frequency response:
0.05 – 150Hz within 3dB
• Time constant :
3.2 seconds or more
• Digital Filter:
AC: -30dB or less, 60 or 50Hz
Drift: -3dB, 0.5Hz Muscle: -3dB, 35Hz or 25Hz
• A/D conversion:
12bit
• Sampling rate:
10000 sampling /sec.
• Defibrillator Protection :
to 5000V, 400J
• Patient leakage current:
10µA or less
• Polarization Voltage:
±500mV or more
Display:
• Display System:
5.7 inch STN liquid crystal monochrome display with backlight, 320×240 dots
• ECG Display:
4/12-Lead
■Print :
• Print Mode:
3chx4-row, 3chx4-row+Rhythm
Arrhythmia Monitoring Summary, ANS Test
• Recording Type:
Thermal Array (8 dots/mm)
• Recording Sensitivity:
2.5, 5, 10 OR 20 mm/mV, Auto selection
• Recording Speed: 5, 10,12.5, 25, OR 50 mm/sec
Paper Size: Roll : 80 mm x 30 M
■ Memory :
• Internal Memory :
200 resting ECG

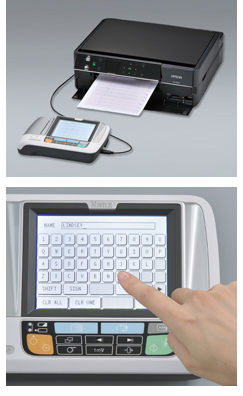

External Inkjet Printer:
USB Interface1 or 2 pages with Landscape/Portrait in A4/Letter
ECG: 12chx1-row or 6chx2-row with Interpretation Result
■Data Communication :
• ECG Data LAN: IEEE 802.3U 100 BASE,TX x 1
• External Memory, Printer or Keyboard: USB 2.0 x 1
Keyboard
Alphanumeric Touch Key in LCD
Function Keys (Membrane Switch)
Operation mode
Auto, Freeze, Pre-check, Post Stress, Manual, Lead - off Alarm
Arrhythmia monitoring mode: 1-15 min, Filing Mode
■ Interpretation :
• Number of Statement : 147 cases
Neonate : 0 – 11 Years Old
Child : 12 – 18 Years Old
Adult : Over 19 Years Old
■Safety :Class I Type CF
Water Proof Protection: Non water proof device(IPXO)
Flammable anaesthetic: Not applicable
Mode of Operation: Continuous operation
■ Power source :
• Rated Power Supply: 100 to 240 VAC, 50 to 60Hz,90VA
• Rechargeable Battery
• Nikel-Metal Hydride battery
• DC 12 V 1500 mAh FDK model: 10HR-AAU
• Rechrage time: 8 hours
• Continuous operation: 2 hours
■Size :
Dimensions: 266mm(W)×173mm(D)×75mm(H)
Wieght Approx.: 1.5kg (including the rechargeable battery)
■Operating Environment :
• Temperature :-10 – 40°C
Humidity : 25 – 95% RH without dew condensation
Pressure : 70 – 106 kPa
■Storage Environment :
• Temperature :-10 – 60°C
• Humidity :
25 – 95% RH without dew condensation
Pressure:70 – 106 kPa
Standard accessories:
• Power Cable
• AC adaptor
• Limp electrode (containing 4 pieces/box)
• Chest electrode (containing 6 pieces/box)
• Patient Cable
• ECG electrode cream 70g
• Operation manual
• CD-R
• ECG recording paper
• Paper spool
Technical Specification:
■Input:
• Input Impedance:
10MΩ or more
• Leads :
Standard 12 leads and Cabrera lead
Simultaneous or Real time input
• Patient Input:
... read more
Company Name: SUZUKEN
Origin: japan
Trade Mark: SUZUKEN

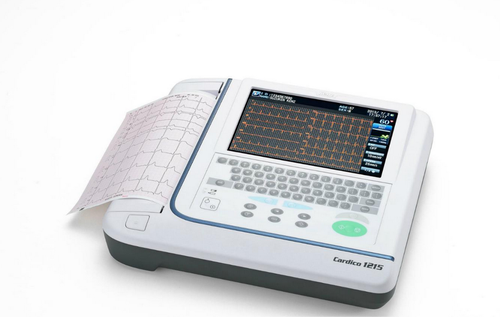

Model: KENZ CARDICO 1215
Download ECG Machine 12 channel KENZ CARDICO 1215Specifications:
Technical Specification:
■ Input:
Input Impedance:
Over 10MΩ
Leads :
Standard 12 leads and Cabrera leads
Simultaneous or Real time input
Patient Input:
One Patient
Common Mode Rejection:
Over 100 dB
Frequency response:
0.05 – 150Hz within -3dB to +0.5 dB
Time constant :
Over 3.2 seconds
Digital Filter:
Hum noise, Drift(weak/normal), Muscle : 25/35 Hz
A/D conversion:
13bit (2.44 µV/digit)
Sampling rate:
Input : 1.0000 sampling/sec
Pacemaker detection auxiliary function 10.000 samples/sec
Interpretation/print : 2 msec
Defibrillator Protection :
Up to 5000V, 400J
Patient leakage current:
Less than 10µA
Display :
Display Screen:
Touch Screen 8.5- inche color LCD touch panel with backlight 800*480 dots
ECG Display:
4/6/12 lead
Print :
Print Mode:
1-Analysis report
2- one sheet report
3- Arrhythmia analysis report
4- 3ch+ Arrhythmia lead ECG
5- 6 ch ECG
6- 12 ch ECG
Printer: Thermal Array 8 dots/mm
Sensitivity:
2.5 , 5 ,10 , 20 mm/mV , Auto selection
Speed: 5, 10,12.5 , 25, 50 mm/sec
Paper Size:
Z-fold paper / Roll paper (210mm width)
■ Safety :
Class I Type CF
Water proof protection : Non water proof device (IPXO)
Mode of operation : Continousoperation
■ Power :
AC 110 ~ 240 V 50-60Hz
Rechargeable battery : 12 VDC, Nickel-Metal Hydride battery FDK model: HHR-38AF25GL
Recharge time : 8 hours
Continous operation : 2.5 hours
Recording ECG for 10 Sec in Auto mode with analysis
■ Size :
• Dimensions: 350mm (W) x 305mm (D) x 89 mm (H)
• Weight: Approx. 4 kg
Operating Environment :
Temperature : 10 to 40°C
Humidity : 25 to 95% RH without dew condensation
Pressure : 700 to 1060 hPa
■ Storage Environment :
Temperature : -20 to 60°C
Humidity : 20 to 90% RH without dew condensation
Pressure : 700 – 1060 hPa
Communication port :
• LAN port
• USB port
Memory :
Internal Memory :
1.000 Resting ECG
External USB :
7.200/8GB Resting ECG (option)
■ Data Communication : USB Port x 1
■ Interpretation :
Number of Statement :
147 cases
Neonate : 0 – 11 Years Old
Child : 12 – 18 Years Old
Adalt : Over 19 Years Old
Operation mode :
AUTo ,Freeze , Pre-check ,Post Stress , Manual , Lead-off Alarm , Arrhythmia monitoring mode : 30 sec , 1-15 min , VPC/SVPC summary , Automatic Nervous system Test
Standard Accessories :
- Lemb electrode
- Chest electrode
- Patient cable
- ECG cream
- AC adapter
- CD-R
- ECG recording paper (Z-fold)
Paper spool
Technical Specification:
■ Input:
Input Impedance:
Over 10MΩ
Leads :
Standard 12 leads and Cabrera leads
Simultaneous or Real time input
Patient Input: ... read more
